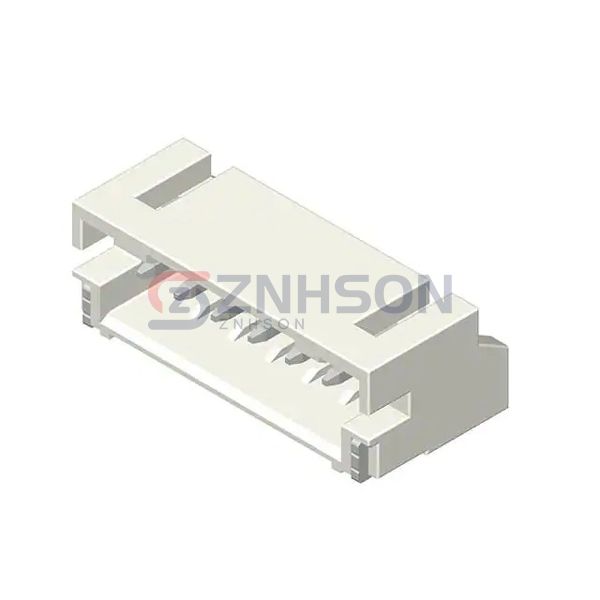

CI0102M1HR0-NH
Cvilux USA
Cvilux USA
2 POS 2.00MM(.079) SINGLE ROW SM
$0.28
Available to order
Reference Price (USD)
1+
$0.28000
500+
$0.2772
1000+
$0.2744
1500+
$0.2716
2000+
$0.2688
2500+
$0.266
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The CI0102M1HR0-NH by Cvilux USA is a premium rectangular connector header designed for male pin connections. Engineered for precision, these headers offer low insertion loss and high mating cycles. Perfect for high-density PCB applications, the CI0102M1HR0-NH supports various configurations to meet diverse needs. Its applications span across data communication, military equipment, and renewable energy systems. Cvilux USA ensures each connector meets rigorous quality standards for global compliance.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.079" (2.00mm)
- Number of Positions: 2
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Surface Mount, Right Angle
- Termination: Solder
- Fastening Type: Detent Lock
- Contact Length - Mating: 0.142" (3.61mm)
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.217" (5.51mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 120.0µin (3.05µm)
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polyamide (PA6T), Nylon 6T, Halogen Free
- Features: Solder Retention
- Operating Temperature: -25°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Natural
- Current Rating (Amps): 2A
- Voltage Rating: 250VAC/DC
