CI0104M1VR0-NH
Cvilux USA
Cvilux USA
4 POS 2.00MM(.079) SINGLE ROW SM
$0.40
Available to order
Reference Price (USD)
1+
$0.40000
500+
$0.396
1000+
$0.392
1500+
$0.388
2000+
$0.384
2500+
$0.38
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your electronic assemblies with the CI0104M1VR0-NH rectangular connector header from Cvilux USA. These male pin connectors are built for high-performance applications, offering excellent signal integrity and durability. Suitable for use in automotive, medical, and telecommunications industries, the CI0104M1VR0-NH meets the highest industry standards. Cvilux USA provides connectors that ensure long-term reliability and performance.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.079" (2.00mm)
- Number of Positions: 4
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Surface Mount
- Termination: Solder
- Fastening Type: Detent Lock
- Contact Length - Mating: 0.142" (3.61mm)
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.263" (6.67mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 120.0µin (3.05µm)
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polyamide (PA6T), Nylon 6T, Halogen Free
- Features: Pick and Place, Solder Retention
- Operating Temperature: -25°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Natural
- Current Rating (Amps): 2A
- Voltage Rating: 250VAC/DC
Related Products
Samtec Inc.
STMM-108-02-F-D
Preci-Dip
890-80-037-10-004101
TE Connectivity AMP Connectors
104350-3
TE Connectivity AMP Connectors
2-640456-1
Amphenol Sine Systems Corp
ATP04-4P-BM12
Samtec Inc.
TMM-116-01-L-D-SM-P-TR
Amphenol ICC (FCI)
10129381-904002ALF
Preci-Dip
350-80-134-00-013101
Samtec Inc.

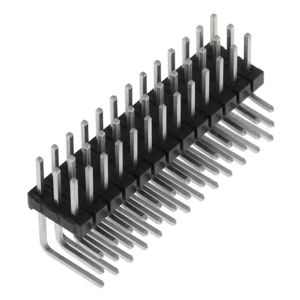

TSW-113-08-T-T-RA
