CI1106M1VR0-NH
Cvilux USA
Cvilux USA
6 POS 1.00MM(.039) SINGLE ROW ST
$0.28
Available to order
Reference Price (USD)
1+
$0.28000
500+
$0.2772
1000+
$0.2744
1500+
$0.2716
2000+
$0.2688
2500+
$0.266
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram

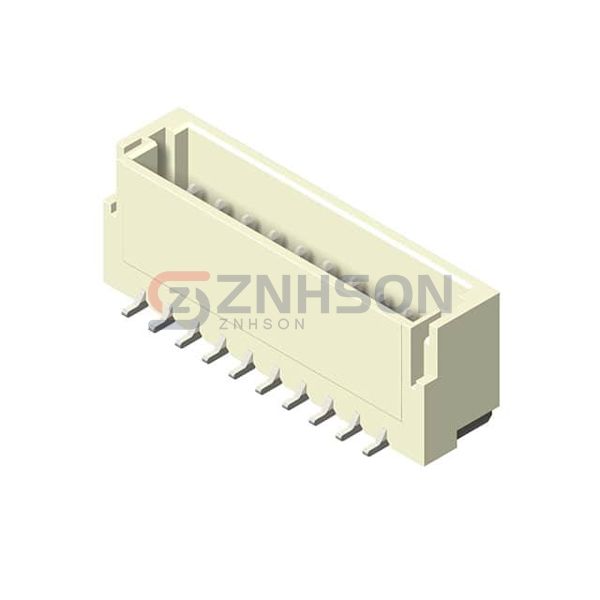

The CI1106M1VR0-NH by Cvilux USA is a versatile rectangular connector header designed for male pin connections. With a focus on quality and precision, these headers support various PCB layouts and configurations. Ideal for applications in robotics, power supplies, and audio equipment. Cvilux USA delivers connectors that meet the needs of modern electronics with unmatched reliability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.039" (1.00mm)
- Number of Positions: 6
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Surface Mount
- Termination: Solder
- Fastening Type: Detent Lock
- Contact Length - Mating: 0.069" (1.75mm)
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.169" (4.30mm)
- Contact Shape: Rectangular
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 100.0µin (2.54µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polyamide (PA6T), Nylon 6T, Glass Filled, Halogen Free
- Features: Pick and Place, Solder Retention
- Operating Temperature: -25°C ~ 85°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Natural
- Current Rating (Amps): 1A (AC/DC)
- Voltage Rating: 50VAC
