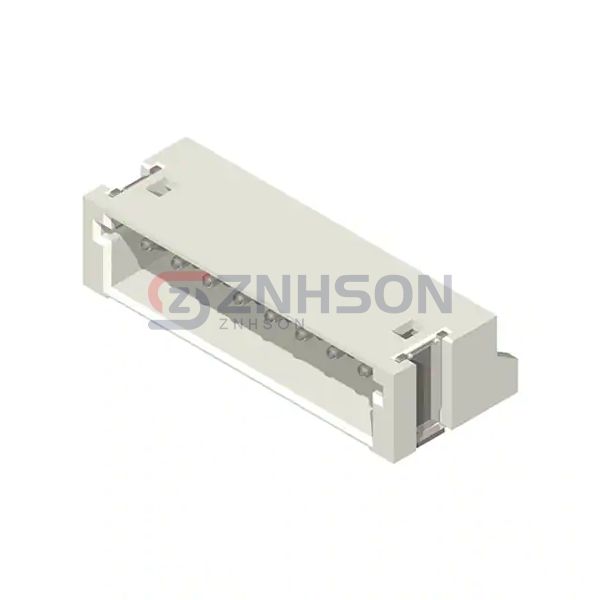

CI1502M1HR0-NH
Cvilux USA
Cvilux USA
2 POS 1.50MM(.059) WIRE TO BOARD
$0.24
Available to order
Reference Price (USD)
1+
$0.24000
500+
$0.2376
1000+
$0.2352
1500+
$0.2328
2000+
$0.2304
2500+
$0.228
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Choose the CI1502M1HR0-NH rectangular connector header from Cvilux USA for superior male pin interconnections. These headers are engineered for high-density applications, offering excellent conductivity and mechanical stability. Common uses include server racks, test equipment, and marine electronics. Cvilux USA is committed to providing connectors that exceed industry expectations.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.059" (1.50mm)
- Number of Positions: 2
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Surface Mount, Right Angle
- Termination: Solder
- Fastening Type: Detent Lock
- Contact Length - Mating: 0.100" (2.54mm)
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.148" (3.75mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 120.0µin (3.05µm)
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polyamide (PA46), Nylon 4/6
- Features: Solder Retention
- Operating Temperature: -25°C ~ 85°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Natural
- Current Rating (Amps): 1A (AC/DC)
- Voltage Rating: 50VAC
