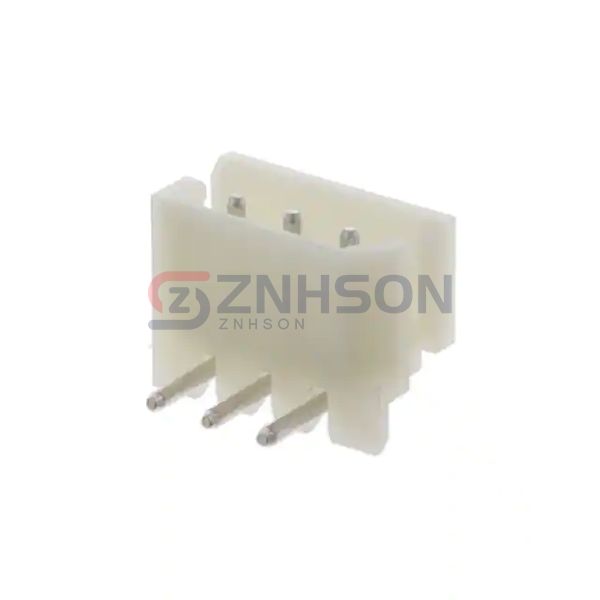

CI2503P1H00-NH
Cvilux USA
Cvilux USA
3 POS 2.50MM (.098) WIRE TO BOAR
$0.20
Available to order
Reference Price (USD)
1+
$0.20000
500+
$0.198
1000+
$0.196
1500+
$0.194
2000+
$0.192
2500+
$0.19
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The CI2503P1H00-NH male pin header by Cvilux USA provides a reliable solution for rectangular connectors. Designed for ease of use and high performance, these headers are suitable for a wide range of applications, including LED lighting, HVAC systems, and portable devices. Cvilux USA guarantees connectors that enhance your product's functionality and lifespan.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.098" (2.50mm)
- Number of Positions: 3
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Detent Lock
- Contact Length - Mating: -
- Contact Length - Post: 0.134" (3.40mm)
- Overall Contact Length: -
- Insulation Height: 0.193" (4.90mm)
- Contact Shape: Circular
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 120.0µin (3.05µm)
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polyamide (PA6T), Nylon 6T, Glass Filled, Halogen Free
- Features: -
- Operating Temperature: -25°C ~ 85°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Natural
- Current Rating (Amps): 3A
- Voltage Rating: 50VAC
Related Products
JST Sales America Inc.
S10B-PH-SM4-TB(LF)(SN)
Samtec Inc.
TSM-105-04-T-SV-TR
TE Connectivity AMP Connectors
6-103634-5
Preci-Dip
850-10-045-30-135101
Samtec Inc.
TFM-110-02-S-D-LC-P-TR
Adam Tech
HPH2-A-04-UA
Harwin Inc.
M80-8542042

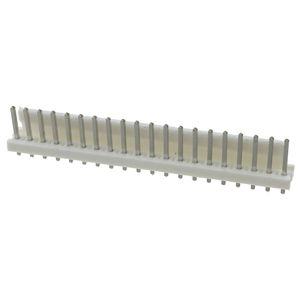

TE Connectivity AMP Connectors
2-640445-0

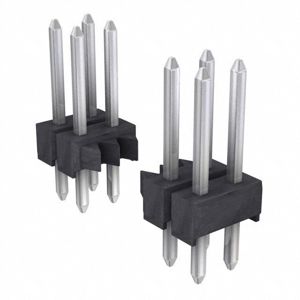

Harwin Inc.
