CI3102P1V00 -NH
Cvilux USA
Cvilux USA
2 POS 2.54MM(.100) WIRE TO BOARD
$0.19
Available to order
Reference Price (USD)
1+
$0.19000
500+
$0.1881
1000+
$0.1862
1500+
$0.1843
2000+
$0.1824
2500+
$0.1805
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The CI3102P1V00 -NH by Cvilux USA is a premium rectangular connector header designed for male pin connections. Engineered for precision, these headers offer low insertion loss and high mating cycles. Perfect for high-density PCB applications, the CI3102P1V00 -NH supports various configurations to meet diverse needs. Its applications span across data communication, military equipment, and renewable energy systems. Cvilux USA ensures each connector meets rigorous quality standards for global compliance.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 2
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 1 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Friction Lock
- Contact Length - Mating: 0.295" (7.49mm)
- Contact Length - Post: 0.134" (3.40mm)
- Overall Contact Length: 0.559" (14.20mm)
- Insulation Height: 0.453" (11.50mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 120.0µin (3.05µm)
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Thermoplastic, Halogen Free
- Features: -
- Operating Temperature: -25°C ~ 85°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Natural
- Current Rating (Amps): 3A
- Voltage Rating: 250VAC
Related Products
Molex
0702871102
Samtec Inc.
EHT-108-01-L-D-SM-P
Samtec Inc.
HTSW-118-07-T-D
Samtec Inc.
MPTC-02-80-02-01-03-L-RA-SD
Samtec Inc.
FTSH-135-04-L-DH-A-TR
Sullins Connector Solutions
PBC18SBEN
Molex

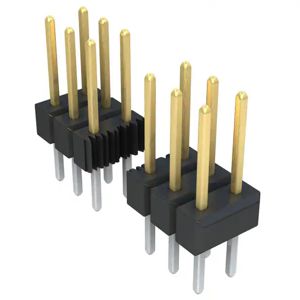

0010897542
Molex

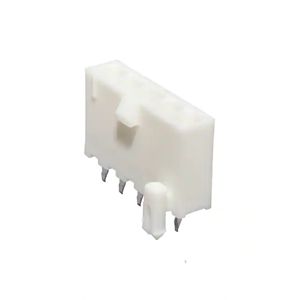

0460145001
Samtec Inc.

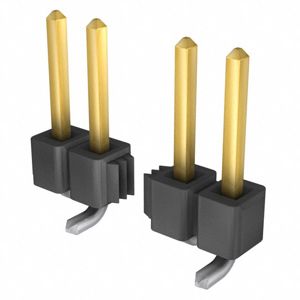

TSM-112-01-S-SV-P-TR
