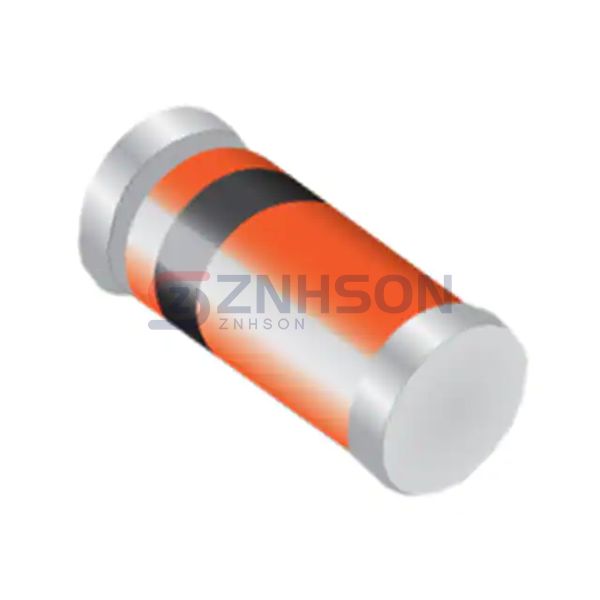

CLL4690 BK TIN/LEAD
Central Semiconductor Corp
Central Semiconductor Corp
SURFACE MOUNT-DIODE-ZENER
$2.12
Available to order
Reference Price (USD)
1+
$2.12000
500+
$2.0988
1000+
$2.0776
1500+
$2.0564
2000+
$2.0352
2500+
$2.014
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The CLL4690 BK TIN/LEAD by Central Semiconductor Corp is a high-performance single Zener diode, part of the Discrete Semiconductor Products lineup. Designed for accuracy and reliability, this diode features low dynamic impedance and excellent temperature stability. It is widely used in voltage reference circuits, power supplies, and signal conditioning applications. For instance, the CLL4690 BK TIN/LEAD is essential in medical imaging devices, where it maintains precise voltage levels for accurate diagnostics. It also plays a critical role in aerospace electronics, ensuring reliable operation under extreme conditions. Furthermore, it is used in consumer electronics, such as smart TVs and home appliances, to enhance performance and longevity.
Specifications
- Product Status: Obsolete
- Voltage - Zener (Nom) (Vz): 5.6 V
- Tolerance: ±5%
- Power - Max: 500 mW
- Impedance (Max) (Zzt): -
- Current - Reverse Leakage @ Vr: 10 µA @ 4 V
- Voltage - Forward (Vf) (Max) @ If: 1.5 V @ 100 mA
- Operating Temperature: -65°C ~ 200°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: DO-213AC, MINI-MELF, SOD-80
- Supplier Device Package: SOD-80
