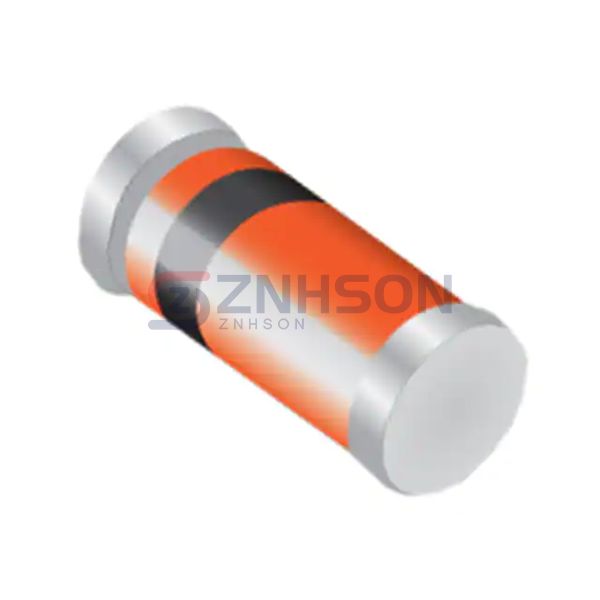

CLL5225B BK TIN/LEAD
Central Semiconductor Corp
Central Semiconductor Corp
SURFACE MOUNT-DIODE-ZENER
$0.40
Available to order
Reference Price (USD)
1+
$0.40000
500+
$0.396
1000+
$0.392
1500+
$0.388
2000+
$0.384
2500+
$0.38
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The CLL5225B BK TIN/LEAD from Central Semiconductor Corp is a high-performance Zener diode designed for precision voltage regulation in various electronic circuits. As part of the Discrete Semiconductor Products category, this single Zener diode offers exceptional stability and reliability, making it ideal for applications requiring consistent voltage reference. Key features include low impedance, sharp breakdown characteristics, and excellent temperature stability. These diodes are widely used in power supplies, voltage clippers, and surge protectors. For instance, the CLL5225B BK TIN/LEAD is commonly employed in automotive electronics, telecommunications equipment, and industrial control systems to ensure stable voltage levels and protect sensitive components from voltage spikes.
Specifications
- Product Status: Active
- Voltage - Zener (Nom) (Vz): 3 V
- Tolerance: ±5%
- Power - Max: 500 mW
- Impedance (Max) (Zzt): 29 Ohms
- Current - Reverse Leakage @ Vr: 50 µA @ 1 V
- Voltage - Forward (Vf) (Max) @ If: 1.25 V @ 200 mA
- Operating Temperature: -65°C ~ 200°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: DO-213AC, MINI-MELF, SOD-80
- Supplier Device Package: SOD-80
Related Products
Vishay General Semiconductor - Diodes Division
BZG05C24-M3-08
Microchip Technology
1N4755CPE3/TR8
Microchip Technology
JANHCA1N4565A
Microchip Technology
SMBJ4744/TR13
Microchip Technology

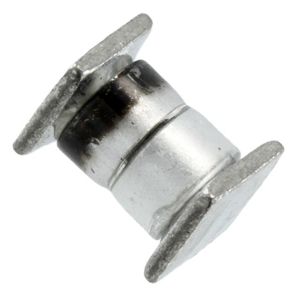

JAN1N4961CUS
Microchip Technology
JAN1N3045BUR-1/TR
Diodes Incorporated
MMBZ5230BS-7
Microchip Technology

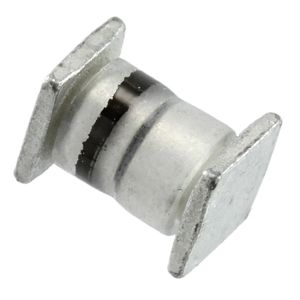

1N4988US
