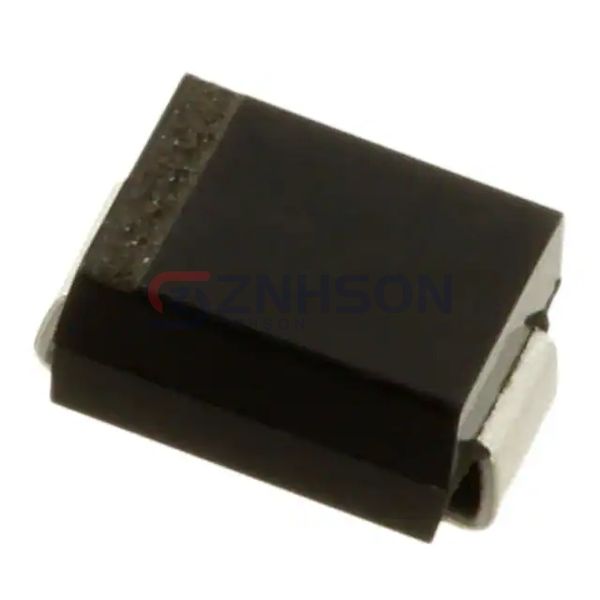

CMSH3-20M TR13 PBFREE
Central Semiconductor Corp
Central Semiconductor Corp
DIODE SCHOTTKY 20V 3A SMB
$0.89
Available to order
Reference Price (USD)
1+
$0.89000
500+
$0.8811
1000+
$0.8722
1500+
$0.8633
2000+
$0.8544
2500+
$0.8455
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The CMSH3-20M TR13 PBFREE by Central Semiconductor Corp is a top-tier single rectifier diode designed for high-efficiency power conversion. Belonging to the Diodes - Rectifiers - Single category, it features ultra-fast recovery times and minimal power dissipation, making it perfect for switch-mode power supplies and DC-DC converters. Its versatile applications span industrial motor drives, solar inverters, and consumer electronics, where consistent performance is essential. Engineered for durability, the CMSH3-20M TR13 PBFREE ensures long-term reliability even in harsh operating conditions. Trust Central Semiconductor Corp for cutting-edge semiconductor solutions that drive innovation.
Specifications
- Product Status: Active
- Diode Type: Schottky
- Voltage - DC Reverse (Vr) (Max): 20 V
- Current - Average Rectified (Io): 3A
- Voltage - Forward (Vf) (Max) @ If: 550 mV @ 3 A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): -
- Current - Reverse Leakage @ Vr: 500 µA @ 20 V
- Capacitance @ Vr, F: 280pF @ 4V, 1MHz
- Mounting Type: Surface Mount
- Package / Case: DO-214AA, SMB
- Supplier Device Package: SMB
- Operating Temperature - Junction: -65°C ~ 150°C
Related Products
Rohm Semiconductor
RB168VYM-30FHTR
Vishay General Semiconductor - Diodes Division
GIB1403-E3/81
Solid State Inc.
1N3595R
Taiwan Semiconductor Corporation
SSL23
Vishay General Semiconductor - Diodes Division
SB5H90-E3/54
Taiwan Semiconductor Corporation
BA157GH
onsemi
SB01-15NP
Wolfspeed, Inc.
C3D12065A
Nexperia USA Inc.
BAS40H,115

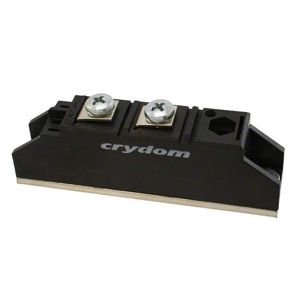

Sensata-Crydom
