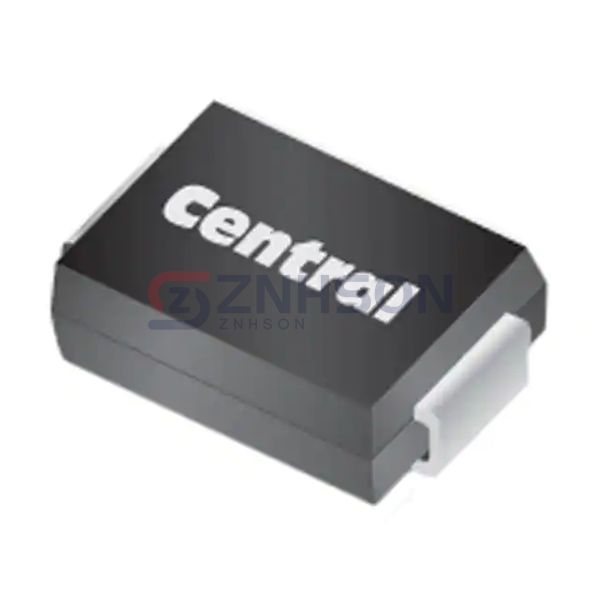

CMSSH-3A BK PBFREE
Central Semiconductor Corp
Central Semiconductor Corp
DIODE SCHOTTKY 30V 100MA SMC
$0.22
Available to order
Reference Price (USD)
1+
$0.22500
500+
$0.22275
1000+
$0.2205
1500+
$0.21825
2000+
$0.216
2500+
$0.21375
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
For engineers specializing in power electronics, the CMSSH-3A BK PBFREE by Central Semiconductor Corp represents the pinnacle of rectifier diode array technology. Part of the essential Discrete Semiconductor Products lineup, this device features parallel diode configurations for increased current handling. Its applications span photovoltaic systems, UPS backups, and industrial automation controls. With Central Semiconductor Corp's patented junction design, the CMSSH-3A BK PBFREE achieves superior heat dissipation and long-term stability under continuous load.
Specifications
- Product Status: Active
- Diode Configuration: 1 Pair Common Anode
- Diode Type: Schottky
- Voltage - DC Reverse (Vr) (Max): 30 V
- Current - Average Rectified (Io) (per Diode): 100mA (DC)
- Voltage - Forward (Vf) (Max) @ If: 1 V @ 100 mA
- Speed: Small Signal =< 200mA (Io), Any Speed
- Reverse Recovery Time (trr): 5 ns
- Current - Reverse Leakage @ Vr: 500 nA @ 25 V
- Operating Temperature - Junction: -65°C ~ 150°C
- Mounting Type: Surface Mount
- Package / Case: DO-214AB, SMC
- Supplier Device Package: SMC
