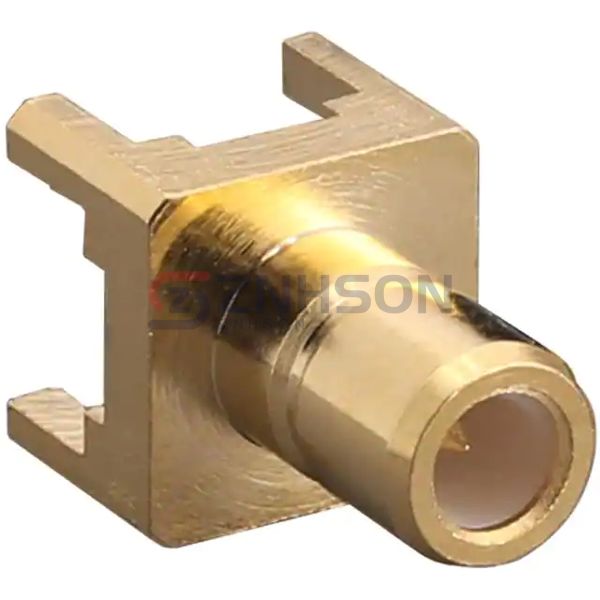

CONSMB001-1-G
Linx Technologies Inc.
Linx Technologies Inc.
CONN SMB JACK STR 50 OHM PCB
$4.68
Available to order
Reference Price (USD)
1+
$4.68000
500+
$4.6332
1000+
$4.5864
1500+
$4.5396
2000+
$4.4928
2500+
$4.446
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The CONSMB001-1-G from Linx Technologies Inc. represents the pinnacle of Coaxial Connectors (RF) innovation. This series incorporates temperature-compensated designs that maintain stable electrical characteristics across extreme thermal cycles. Featuring industry-leading return loss (>20dB typical) and insertion loss (<0.1dB per connection), these connectors are ideal for sensitive measurement applications. The product family includes field-installable, panel-mount, and PCB receptacle variants. Primary application areas: Military radar systems Quantum cascade lasers EMC test chambers Cellular base station radios. The CONSMB001-1-G variant offers unique angled cable exits that simplify routing in space-constrained equipment enclosures while maintaining impedance control.
Specifications
- Product Status: Active
- Connector Style: SMB
- Connector Type: Jack, Male Pin
- Contact Termination: Solder
- Shield Termination: Solder
- Impedance: 50Ohm
- Mounting Type: Through Hole
- Mounting Feature: -
- Cable Group: -
- Fastening Type: Snap-On
- Frequency - Max: 4 GHz
- Number of Ports: 1
- Features: -
- Housing Color: Gold
- Ingress Protection: -
- Center Contact Material: Brass
Related Products
Hirose Electric Co Ltd
POB-LP-55/U(40)
Pomona Electronics
4159
TE Connectivity AMP Connectors
1060883-1

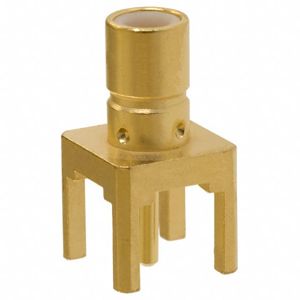

Cinch Connectivity Solutions Johnson
131-9701-201

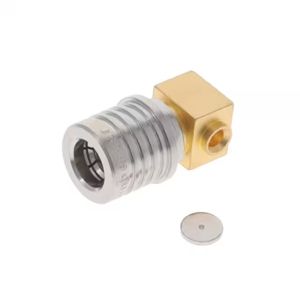

Rosenberger
28S206-271N5

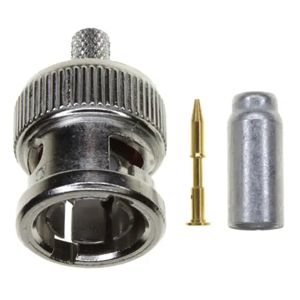

TE Connectivity AMP Connectors
1-5413589-0

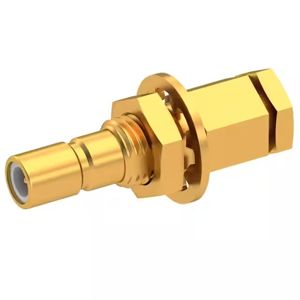

Radiall USA, Inc.
7203-1541-010

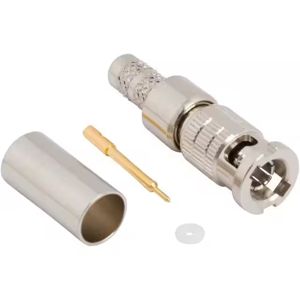

Amphenol RF
034-5079

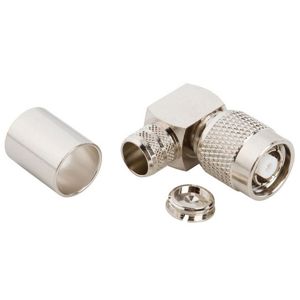

Amphenol RF
