CP-01404150
Cvilux USA
Cvilux USA
4.20MM 4 POS DUAL ROWS RIGHT ANG
$0.29
Available to order
Reference Price (USD)
1+
$0.29000
500+
$0.2871
1000+
$0.2842
1500+
$0.2813
2000+
$0.2784
2500+
$0.2755
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your electronic designs with the CP-01404150 rectangular connector header by Cvilux USA. These male pin connectors provide a secure and efficient solution for PCB interconnections. Featuring a compact design and high conductivity, the CP-01404150 ensures optimal signal transmission. Suitable for harsh environments, these headers are resistant to vibration and corrosion. Common uses include industrial automation, medical devices, and aerospace systems. Trust Cvilux USA for connectors that deliver performance and reliability in every application.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.165" (4.20mm)
- Number of Positions: 4
- Number of Rows: 2
- Row Spacing - Mating: 0.165" (4.20mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Locking Ramp
- Contact Length - Mating: -
- Contact Length - Post: 0.138" (3.50mm)
- Overall Contact Length: -
- Insulation Height: 0.394" (10.00mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polyamide (PA66), Nylon 6/6
- Features: Board Lock
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Natural
- Current Rating (Amps): 9A
- Voltage Rating: 600VAC
Related Products
Preci-Dip
800-80-050-30-001101

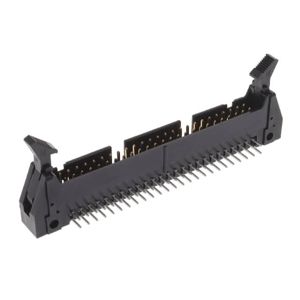

Hirose Electric Co Ltd
HIF3BA-50PA-2.54DS(63)

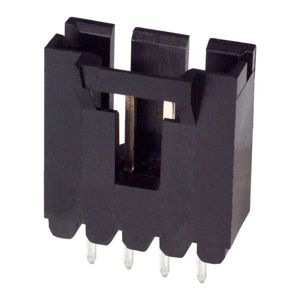

TE Connectivity AMP Connectors
5-103735-3

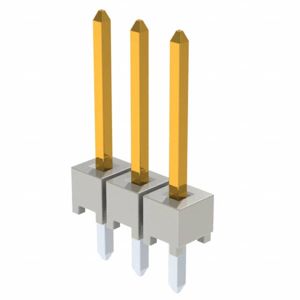

Samtec Inc.
HTSW-103-14-SM-S

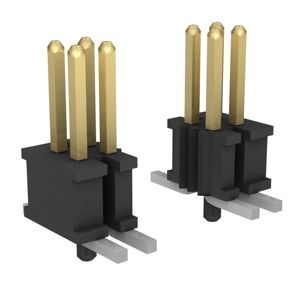

Samtec Inc.
FTSH-144-01-L-DV-A

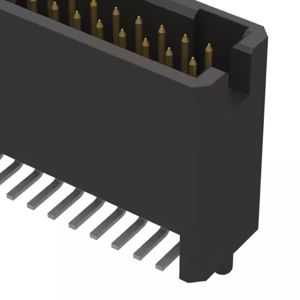

Samtec Inc.
TFC-125-32-F-D-A-P-TR

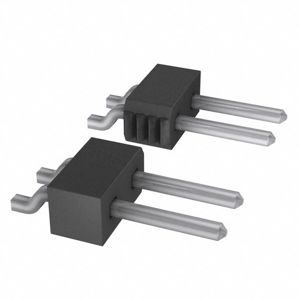

Samtec Inc.
TSM-120-01-T-SH

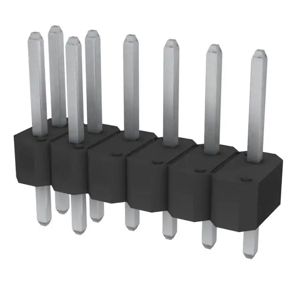

Amphenol ICC (FCI)
