CP3504P1V00-S-NH
Cvilux USA
Cvilux USA
4 POS 3.00MM(.118) SINGLE ROW ST
$0.32
Available to order
Reference Price (USD)
1+
$0.32000
500+
$0.3168
1000+
$0.3136
1500+
$0.3104
2000+
$0.3072
2500+
$0.304
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The CP3504P1V00-S-NH male pin header by Cvilux USA offers a dependable solution for rectangular connectors. Designed for easy integration, these headers ensure consistent connectivity in demanding environments. Features include high-temperature resistance and superior contact stability. Applications range from industrial machinery to smart home systems. Choose Cvilux USA for connectors that combine innovation with durability.
Specifications
- Product Status: Active
- Connector Type: Plug
- Contact Type: Male Pin
- Pitch - Mating: 0.118" (3.00mm)
- Number of Positions: 4
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Press-Fit, Solder
- Fastening Type: Locking Ramp
- Contact Length - Mating: -
- Contact Length - Post: 0.126" (3.20mm)
- Overall Contact Length: -
- Insulation Height: 0.388" (9.86mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polyamide (PA6T), Nylon 6T, Glass Filled, Halogen Free
- Features: Board Guide
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 7A
- Voltage Rating: 600VAC
Related Products
Samtec Inc.
TSM-108-01-S-SH-002-P-TR
Samtec Inc.
TSM-126-01-S-DV-A
Samtec Inc.
TFC-110-02-L-D-A-TR
Samtec Inc.
TSM-128-01-T-SH
Samtec Inc.
TSW-105-23-G-S
Samtec Inc.
ZSS-115-01-G-D-540-01
Samtec Inc.
HTSW-112-07-F-S
Samtec Inc.
ZSS-112-04-G-D-840
Preci-Dip

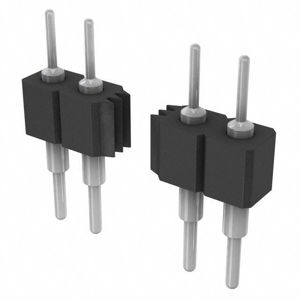

351-80-137-00-003101
