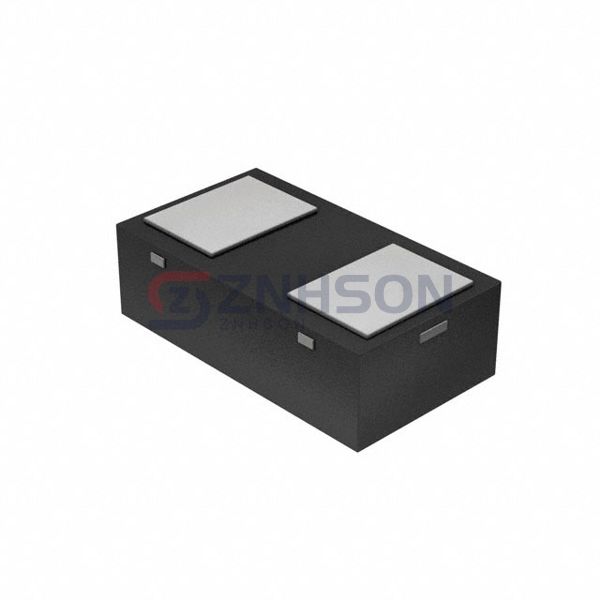

CPDQC12V-HF
Comchip Technology
Comchip Technology
TVS DIODE 12VWM 25V 0402C/SOD923
$0.39
Available to order
Reference Price (USD)
1+
$0.39000
500+
$0.3861
1000+
$0.3822
1500+
$0.3783
2000+
$0.3744
2500+
$0.3705
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Protect your electronics with the CPDQC12V-HF TVS diode by Comchip Technology. This diode offers exceptional clamping voltage and low leakage current, making it ideal for precision circuit protection. TVS diodes like the CPDQC12V-HF are critical in applications such as power supplies, USB ports, and communication interfaces. They effectively absorb transient energy, preventing damage to connected devices. For example, the CPDQC12V-HF can shield HDMI ports in consumer electronics from voltage surges. Trust Comchip Technology's expertise in delivering high-quality TVS diodes for your protection needs.
Specifications
- Product Status: Active
- Type: Zener
- Unidirectional Channels: -
- Bidirectional Channels: 1
- Voltage - Reverse Standoff (Typ): 12V (Max)
- Voltage - Breakdown (Min): 13V
- Voltage - Clamping (Max) @ Ipp: 25V
- Current - Peak Pulse (10/1000µs): 1A (8/20µs)
- Power - Peak Pulse: 25W
- Power Line Protection: No
- Applications: General Purpose
- Capacitance @ Frequency: 12pF @ 1MHz
- Operating Temperature: -40°C ~ 125°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: 0402 (1006 Metric)
- Supplier Device Package: 0402C/SOD-923F
