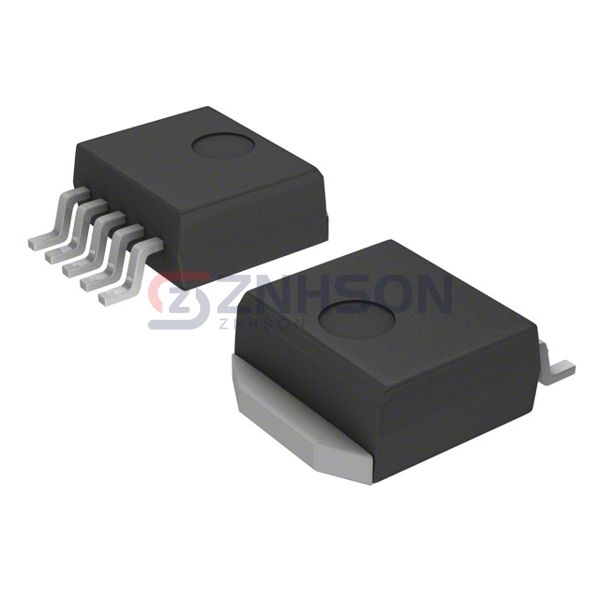

CS5253B-8GDPR5
onsemi
onsemi
IC REG LINEAR 2.5V 3A D2PAK-5
$1.47
Available to order
Reference Price (USD)
1+
$1.47000
500+
$1.4553
1000+
$1.4406
1500+
$1.4259
2000+
$1.4112
2500+
$1.3965
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the CS5253B-8GDPR5 linear voltage regulator IC by onsemi, a standout product in our PMIC - Voltage Regulators - Linear category. This IC provides precise voltage regulation with ultra-low noise output, making it perfect for analog and RF circuits. The device features excellent PSRR (Power Supply Rejection Ratio) performance and comes in various package options to suit different design requirements. Linear regulators such as this CS5253B-8GDPR5 model are extensively used in consumer electronics (smartphones, tablets), IoT devices, and aerospace applications where consistent voltage without switching noise is essential. Its robust design ensures reliable operation in harsh environments with wide temperature ranges.
Specifications
- Product Status: Obsolete
- Output Configuration: Positive
- Output Type: Fixed
- Number of Regulators: 1
- Voltage - Input (Max): 13V
- Voltage - Output (Min/Fixed): 2.5V
- Voltage - Output (Max): -
- Voltage Dropout (Max): 1.3V @ 3A
- Current - Output: 3A
- Current - Quiescent (Iq): 10 mA
- Current - Supply (Max): -
- PSRR: 80dB (120Hz)
- Control Features: -
- Protection Features: Over Current, Over Temperature, Short Circuit
- Operating Temperature: 0°C ~ 70°C
- Mounting Type: Surface Mount
- Package / Case: TO-263-6, D²Pak (5 Leads + Tab), TO-263BA
- Supplier Device Package: D2PAK-5
