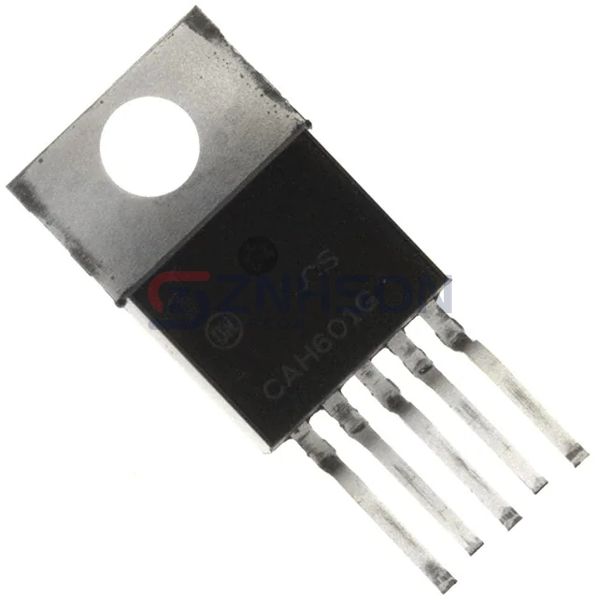

CS8101YTVA5

onsemi

Manufacturer

onsemi

Description:

IC REG LIN 5V 100MA TO220-5

Datasheet:

CS8101YTVA5 Datasheet

$2.67

Available to order

Reference Price (USD)

$2.67000

500+

$2.6433

1000+

$2.6166

1500+

$2.5899

2000+

$2.5632

2500+

$2.5365

Exquisite packaging

Discount

TT / Paypal / Credit Card / Western Union / Money Gram

The CS8101YTVA5 from onsemi is a high-performance linear voltage regulator IC designed for precision power management applications. As part of our PMIC - Voltage Regulators - Linear collection, this component offers exceptional voltage regulation with low dropout characteristics. Featuring thermal shutdown protection and current limiting, this IC maintains stable output voltage even under varying load conditions. These linear regulators are ideal for noise-sensitive applications requiring clean power delivery, such as medical devices, audio equipment, and precision measurement instruments. Typical implementations include power conditioning for microcontroller systems, battery-powered devices, and as post-regulators for switching power supplies.

Specifications

Product Status: Obsolete
Output Configuration: Positive
Output Type: Fixed
Number of Regulators: 1
Voltage - Input (Max): 30V
Voltage - Output (Min/Fixed): 5V
Voltage - Output (Max): -
Voltage Dropout (Max): 0.6V @ 100mA
Current - Output: 100mA
Current - Quiescent (Iq): 140 µA
Current - Supply (Max): 20 mA
PSRR: 75dB (120Hz)
Control Features: Enable, Reset
Protection Features: Over Temperature, Over Voltage, Reverse Polarity, Short Circuit
Operating Temperature: -40°C ~ 125°C
Mounting Type: Through Hole
Package / Case: TO-220-5 Formed Leads
Supplier Device Package: TO-220-5 Vertical
