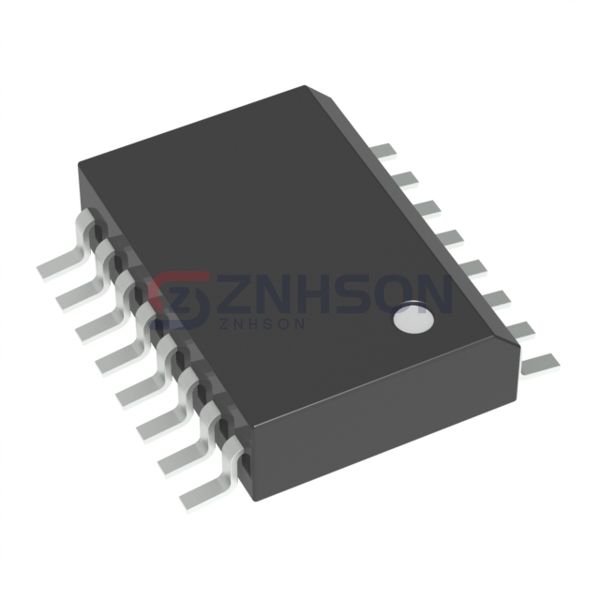

CS8361YDWFR16G

onsemi

Manufacturer

onsemi

Description:

IC REG LIN 5V 100MA/250MA 16SOIC

Datasheet:

CS8361YDWFR16G Datasheet

$0.00

Available to order

Reference Price (USD)

$0.00000

500+

1000+

1500+

2000+

2500+

Exquisite packaging

Discount

TT / Paypal / Credit Card / Western Union / Money Gram

The CS8361YDWFR16G from onsemi is a high-performance PMIC - Voltage Regulators - Linear IC that ensures stable and efficient power delivery for your electronic devices. This IC features low quiescent current, high accuracy, and robust thermal performance, making it a versatile solution for various applications. Whether you're designing for consumer electronics or industrial systems, the CS8361YDWFR16G provides the reliability you need. As a member of the PMIC - Voltage Regulators - Linear family, the CS8361YDWFR16G excels in delivering consistent voltage outputs with minimal deviation. Its advanced design includes protection features such as over-current and over-temperature shutdown, enhancing its durability and safety. These qualities make it a preferred choice for critical applications. The CS8361YDWFR16G is widely used in sectors like healthcare, automotive, and consumer electronics. For instance, it powers portable medical devices, in-car entertainment systems, and smart appliances. Its ability to deliver clean and stable power ensures the longevity and efficiency of your electronic designs.

Specifications

Product Status: Obsolete
Output Configuration: Positive
Output Type: Fixed
Number of Regulators: 2
Voltage - Input (Max): 26V
Voltage - Output (Min/Fixed): 5V, Tracking
Voltage - Output (Max): -
Voltage Dropout (Max): 0.6V @ 100mA, 0.7V @ 250mA
Current - Output: 100mA, 250mA
Current - Quiescent (Iq): 200 µA
Current - Supply (Max): 50 mA
PSRR: 70dB (120Hz)
Control Features: Enable, Reset
Protection Features: Over Temperature, Over Voltage, Reverse Polarity, Short Circuit
Operating Temperature: -40°C ~ 125°C
Mounting Type: Surface Mount
Package / Case: 16-SOIC (0.295", 7.50mm Width)
Supplier Device Package: 16-SOIC
