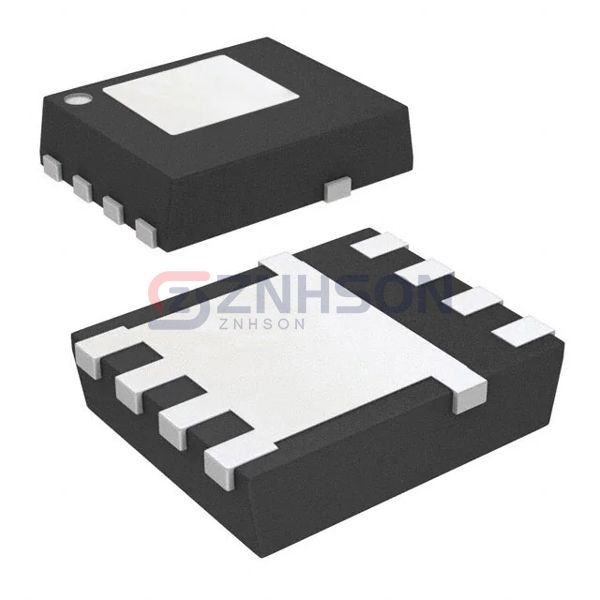

CSD16322Q5C
Texas Instruments
Texas Instruments
MOSFET N-CH 25V 21A/97A 8SON
$1.45
Available to order
Reference Price (USD)
1+
$1.45000
500+
$1.4355
1000+
$1.421
1500+
$1.4065
2000+
$1.392
2500+
$1.3775
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The CSD16322Q5C single MOSFET from Texas Instruments is a game-changer in power electronics. As part of the Discrete Semiconductor Products family, it offers unparalleled efficiency in energy conversion and management. Key applications include uninterruptible power supplies (UPS), welding equipment, and industrial motor drives. With features like high temperature operation and ESD protection, the CSD16322Q5C is a must-have in the Transistors - FETs, MOSFETs - Single category.
Specifications
- Product Status: Obsolete
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 25 V
- Current - Continuous Drain (Id) @ 25°C: 21A (Ta), 97A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 3V, 8V
- Rds On (Max) @ Id, Vgs: 5mOhm @ 20A, 8V
- Vgs(th) (Max) @ Id: 1.4V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 9.7 nC @ 4.5 V
- Vgs (Max): +10V, -8V
- Input Capacitance (Ciss) (Max) @ Vds: 1365 pF @ 12.5 V
- FET Feature: -
- Power Dissipation (Max): 3.1W (Ta)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: 8-SON
- Package / Case: 8-PowerTDFN
Related Products
onsemi
NTMTSC002N10MCTXG
onsemi
MMDFS3P303R2
Texas Instruments
CSD17581Q5AT
onsemi
NTMFS6H836NLT1G
Taiwan Semiconductor Corporation

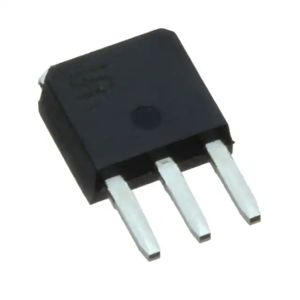

TSM340N06CH X0G
Fairchild Semiconductor

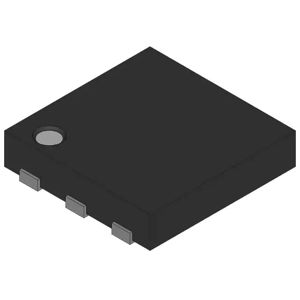

FDFME2P823ZT
Infineon Technologies
BSZ050N03MSGATMA1
Alpha & Omega Semiconductor Inc.
AOB482L
Diodes Incorporated

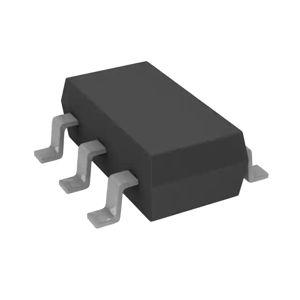

DMN10H170SVT-7
