CSD17552Q3A

Texas Instruments
CSD17552Q3A Preview
Texas Instruments
MOSFET N-CH 30V 15A/60A 8SON
$1.07
Available to order
Reference Price (USD)
2,500+
$0.40745
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram

Specifications

  • Product Status: Active
  • FET Type: N-Channel
  • Technology: MOSFET (Metal Oxide)
  • Drain to Source Voltage (Vdss): 30 V
  • Current - Continuous Drain (Id) @ 25°C: 15A (Ta), 60A (Tc)
  • Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
  • Rds On (Max) @ Id, Vgs: 6mOhm @ 11A, 10V
  • Vgs(th) (Max) @ Id: 1.9V @ 250µA
  • Gate Charge (Qg) (Max) @ Vgs: 12 nC @ 4.5 V
  • Vgs (Max): ±20V
  • Input Capacitance (Ciss) (Max) @ Vds: 2050 pF @ 15 V
  • FET Feature: -
  • Power Dissipation (Max): 2.6W (Ta)
  • Operating Temperature: -55°C ~ 150°C (TJ)
  • Mounting Type: Surface Mount
  • Supplier Device Package: 8-SON (3.3x3.3)
  • Package / Case: 8-PowerVDFN

Related Products

Taiwan Semiconductor Corporation

TSM60NB150CF C0G

Wolfspeed, Inc.

C3M0015065D

Panjit International Inc.

PJQ4410P_R2_00001

Vishay Siliconix

SQM50N04-4M1_GE3

Vishay Siliconix

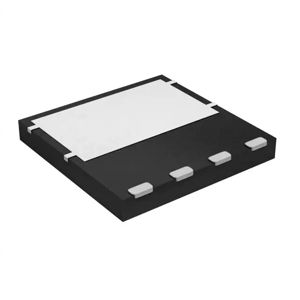

SIHH20N50E-T1-GE3

Rohm Semiconductor

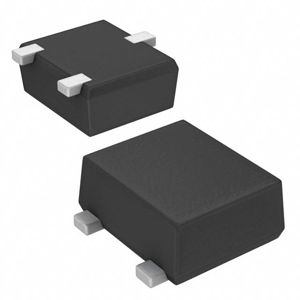

RZF020P01TL

Renesas Electronics America Inc

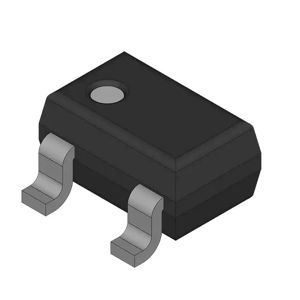

2SJ463A-T1-AT
