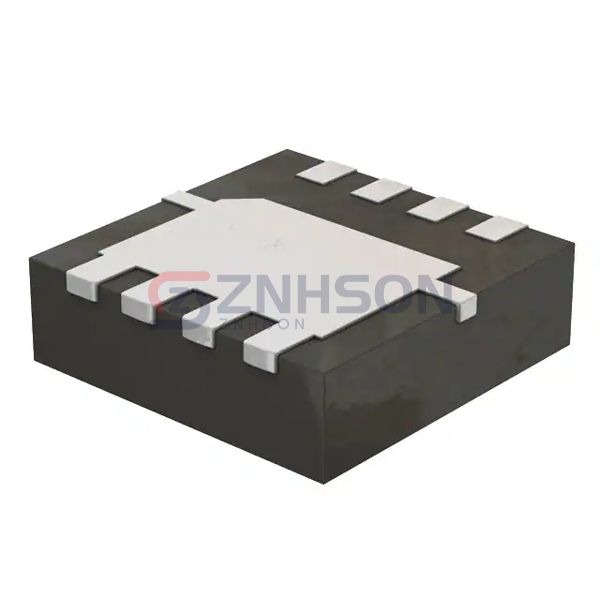

CSD18543Q3AT
Texas Instruments
Texas Instruments
MOSFET N-CH 60V 12A/60A 8VSON
$1.66
Available to order
Reference Price (USD)
250+
$0.57420
500+
$0.50896
750+
$0.44632
1,250+
$0.40455
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The CSD18543Q3AT by Texas Instruments is a premium single MOSFET belonging to the Transistors - FETs, MOSFETs - Single classification. Known for its robust construction and high efficiency, this component is perfect for switching and amplification tasks. Key features include low gate charge, high current capability, and superior thermal performance. Commonly used in automotive systems, industrial automation, and renewable energy solutions, the CSD18543Q3AT is a versatile choice for engineers seeking top-tier Discrete Semiconductor Products.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 60 V
- Current - Continuous Drain (Id) @ 25°C: 12A (Ta), 60A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
- Rds On (Max) @ Id, Vgs: 15.6mOhm @ 12A, 4.5V
- Vgs(th) (Max) @ Id: 2.7V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 14.5 nC @ 10 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 1150 pF @ 30 V
- FET Feature: Standard
- Power Dissipation (Max): 66W (Tc)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: 8-VSONP (3x3.15)
- Package / Case: 8-PowerVDFN
