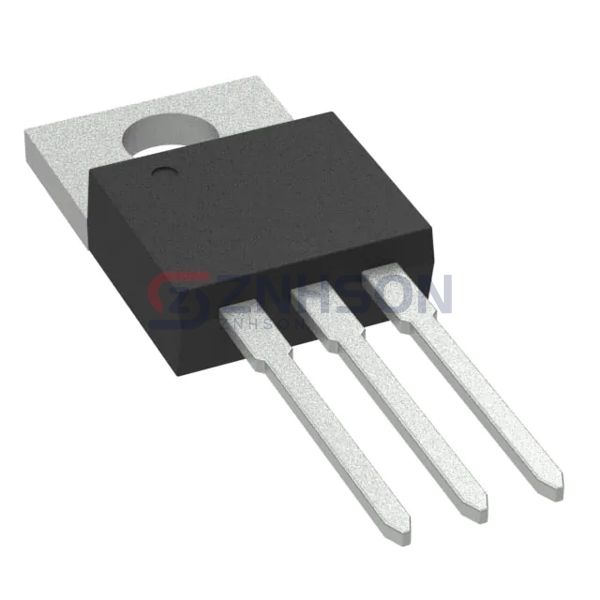

CSD19505KCS
Texas Instruments
Texas Instruments
MOSFET N-CH 80V 150A TO220-3
$3.61
Available to order
Reference Price (USD)
1+
$3.12000
10+
$2.79300
50+
$2.51860
100+
$2.29960
500+
$1.87246
1,000+
$1.58775
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your designs with the CSD19505KCS by Texas Instruments, a top-tier single MOSFET in the Discrete Semiconductor Products range. This component shines in high-power applications such as server farms, electric vehicle charging stations, and smart grid technology. With its low conduction losses and high reliability, the CSD19505KCS is the ideal choice for engineers working with Transistors - FETs, MOSFETs - Single components.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 80 V
- Current - Continuous Drain (Id) @ 25°C: 150A (Ta)
- Drive Voltage (Max Rds On, Min Rds On): 6V, 10V
- Rds On (Max) @ Id, Vgs: 3.8mOhm @ 100A, 6V
- Vgs(th) (Max) @ Id: 3.2V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 76 nC @ 10 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 7820 pF @ 40 V
- FET Feature: -
- Power Dissipation (Max): 300W (Tc)
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Through Hole
- Supplier Device Package: TO-220-3
- Package / Case: TO-220-3
