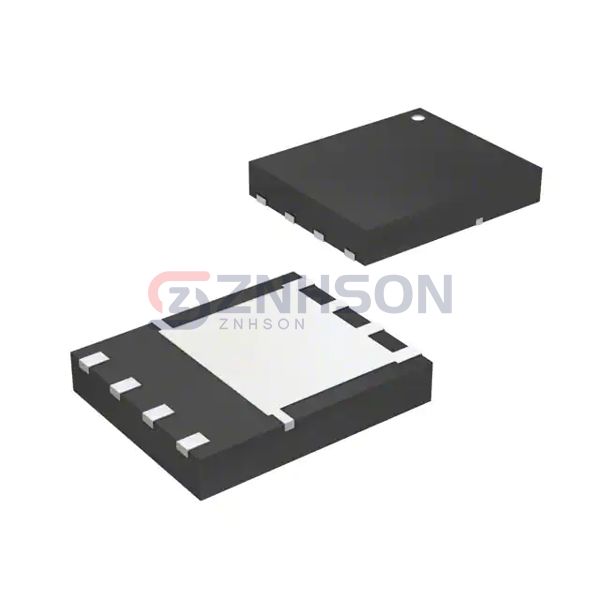

CSD19532Q5B
Texas Instruments
Texas Instruments
MOSFET N-CH 100V 100A 8VSON
$2.88
Available to order
Reference Price (USD)
1+
$2.88000
500+
$2.8512
1000+
$2.8224
1500+
$2.7936
2000+
$2.7648
2500+
$2.736
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The CSD19532Q5B from Texas Instruments redefines excellence in the Transistors - FETs, MOSFETs - Single classification. This Discrete Semiconductor Product boasts advanced thermal management, high-frequency operation, and exceptional durability. Whether you're designing medical equipment, aerospace systems, or IoT devices, the CSD19532Q5B offers the precision and reliability you need. Trust Texas Instruments to power your next breakthrough innovation.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 100 V
- Current - Continuous Drain (Id) @ 25°C: 100A (Ta)
- Drive Voltage (Max Rds On, Min Rds On): 6V, 10V
- Rds On (Max) @ Id, Vgs: 4.9mOhm @ 17A, 10V
- Vgs(th) (Max) @ Id: 3.2V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 62 nC @ 10 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 4810 pF @ 50 V
- FET Feature: -
- Power Dissipation (Max): 3.1W (Ta), 195W (Tc)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: 8-VSON-CLIP (5x6)
- Package / Case: 8-PowerTDFN
Related Products
Goford Semiconductor
18N20
onsemi
MCH6341-TL-H
onsemi
NTMS4503NR2G
Alpha & Omega Semiconductor Inc.
AOH3106
Vishay Siliconix
SQJQ100EL-T1_GE3
IXYS
IXFA12N65X2-TRL
Infineon Technologies

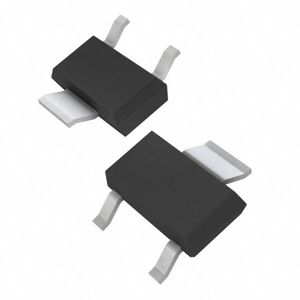

IPN70R2K0P7SATMA1
Vishay Siliconix
SQP90142E_GE3
Fairchild Semiconductor

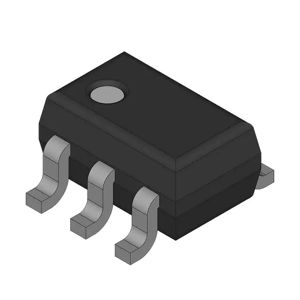

FDG312P
