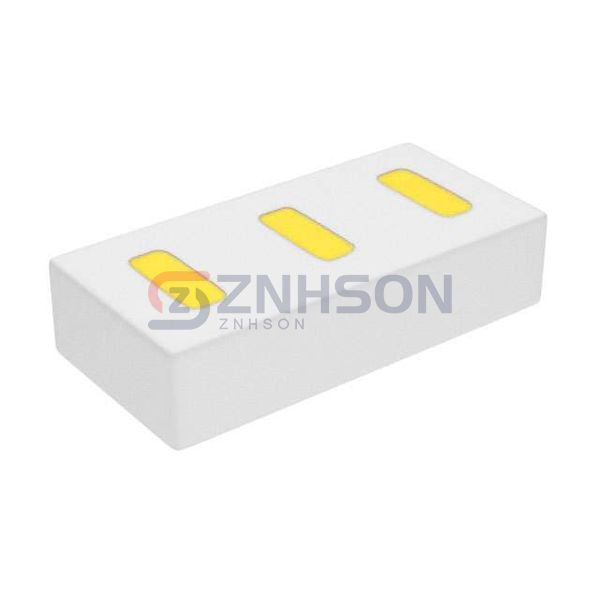

CSD23285F5T
Texas Instruments
Texas Instruments
MOSFET P-CH 12V 5.4A 3PICOSTAR
$1.04
Available to order
Reference Price (USD)
1+
$1.04000
500+
$1.0296
1000+
$1.0192
1500+
$1.0088
2000+
$0.9984
2500+
$0.988
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The CSD23285F5T from Texas Instruments redefines excellence in the Transistors - FETs, MOSFETs - Single classification. This Discrete Semiconductor Product boasts advanced thermal management, high-frequency operation, and exceptional durability. Whether you're designing medical equipment, aerospace systems, or IoT devices, the CSD23285F5T offers the precision and reliability you need. Trust Texas Instruments to power your next breakthrough innovation.
Specifications
- Product Status: Active
- FET Type: P-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 12 V
- Current - Continuous Drain (Id) @ 25°C: 5.4A (Ta)
- Drive Voltage (Max Rds On, Min Rds On): 1.5V, 4.5V
- Rds On (Max) @ Id, Vgs: 35mOhm @ 1A, 4.5V
- Vgs(th) (Max) @ Id: 950mV @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 4.2 nC @ 4.5 V
- Vgs (Max): -6V
- Input Capacitance (Ciss) (Max) @ Vds: 628 pF @ 6 V
- FET Feature: -
- Power Dissipation (Max): 500mW (Ta)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: 3-PICOSTAR
- Package / Case: 3-SMD, No Lead
Related Products
Toshiba Semiconductor and Storage
SSM6K516NU,LF
STMicroelectronics
STB46N30M5
STMicroelectronics
STP13N60M2
Renesas Electronics America Inc

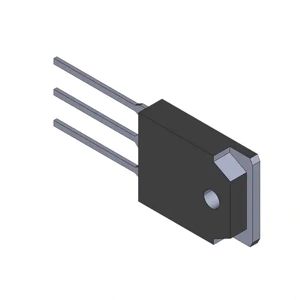

2SK1947-E
Infineon Technologies
SN7002NH6433XTMA1
Alpha & Omega Semiconductor Inc.
AOSS32338C
Panjit International Inc.

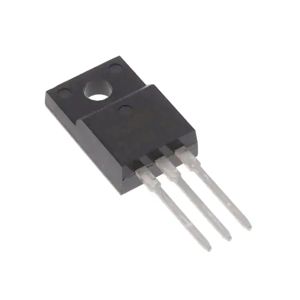

PJMF130N65EC_T0_00001
Infineon Technologies

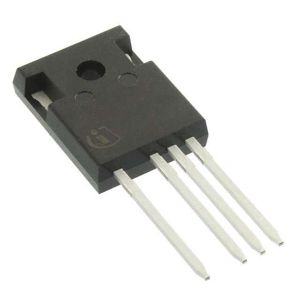

IPZ60R099C7XKSA1
