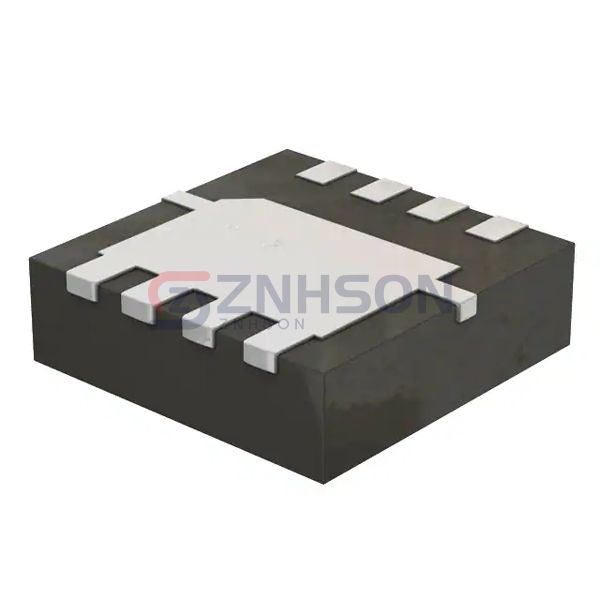

CSD25404Q3T
Texas Instruments
Texas Instruments
MOSFET P-CH 20V 104A 8VSON
$1.44
Available to order
Reference Price (USD)
250+
$0.82132
500+
$0.72580
750+
$0.63412
1,250+
$0.57300
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The CSD25404Q3T single MOSFET from Texas Instruments is a game-changer in power electronics. As part of the Discrete Semiconductor Products family, it offers unparalleled efficiency in energy conversion and management. Key applications include uninterruptible power supplies (UPS), welding equipment, and industrial motor drives. With features like high temperature operation and ESD protection, the CSD25404Q3T is a must-have in the Transistors - FETs, MOSFETs - Single category.
Specifications
- Product Status: Active
- FET Type: P-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 20 V
- Current - Continuous Drain (Id) @ 25°C: 104A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 1.8V, 4.5V
- Rds On (Max) @ Id, Vgs: 6.5mOhm @ 10A, 4.5V
- Vgs(th) (Max) @ Id: 1.15V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 14.1 nC @ 4.5 V
- Vgs (Max): ±12V
- Input Capacitance (Ciss) (Max) @ Vds: 2120 pF @ 10 V
- FET Feature: -
- Power Dissipation (Max): 2.8W (Ta), 96W (Tc)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: 8-VSONP (3x3.15)
- Package / Case: 8-PowerVDFN
Related Products
Infineon Technologies
IRFB7437PBF
Infineon Technologies
IPP05CN10NGXKSA1
Renesas Electronics America Inc
NP36N055HLE-AY
IXYS

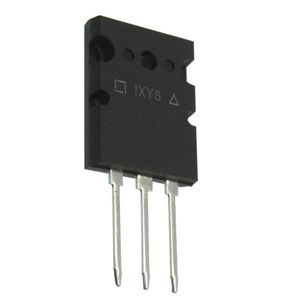

IXFK44N80P
IXYS
IXFT52N50P2
Infineon Technologies
AUIRLR2905ZTRL
Alpha & Omega Semiconductor Inc.
AOTF15S60L
Rohm Semiconductor
RDD050N20TL
Vishay Siliconix

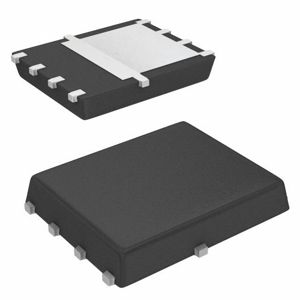

SIR818DP-T1-GE3
