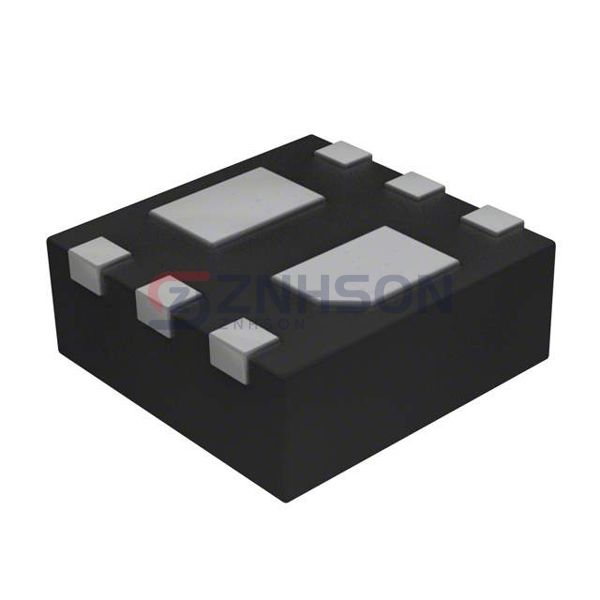

CSD85301Q2
Texas Instruments
Texas Instruments
MOSFET 2N-CH 20V 5A 6WSON
$0.70
Available to order
Reference Price (USD)
3,000+
$0.21545
6,000+
$0.20155
15,000+
$0.19460
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the high-performance CSD85301Q2 from Texas Instruments, a premium addition to our Discrete Semiconductor Products collection. This Transistors - FETs, MOSFETs - Arrays component is engineered for efficiency and reliability, offering exceptional switching speeds and low power consumption. Ideal for power management and amplification circuits, this MOSFET array ensures minimal heat generation and superior durability. Whether you're designing industrial automation systems, automotive electronics, or consumer gadgets, the CSD85301Q2 delivers unmatched performance. Trust Texas Instruments's cutting-edge technology to meet your demanding application needs.
Specifications
- Product Status: Active
- FET Type: 2 N-Channel (Dual)
- FET Feature: Logic Level Gate, 5V Drive
- Drain to Source Voltage (Vdss): 20V
- Current - Continuous Drain (Id) @ 25°C: 5A
- Rds On (Max) @ Id, Vgs: 27mOhm @ 5A, 4.5V
- Vgs(th) (Max) @ Id: 1.2V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 5.4nC @ 4.5V
- Input Capacitance (Ciss) (Max) @ Vds: 469pF @ 10V
- Power - Max: 2.3W
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: 6-WDFN Exposed Pad
- Supplier Device Package: 6-WSON (2x2)
Related Products
onsemi
FDPC5018SG
Analog Devices Inc./Maxim Integrated
MAX5078BATT+
onsemi
MCH6635-TL-E-ON
Fairchild Semiconductor
SI6953DQ
Sanken
SLA5064
Wolfspeed, Inc.
CCS020M12CM2
Texas Instruments
CSD88599Q5DCT
Diodes Incorporated
DMNH6065SSDQ-13
Vishay Siliconix

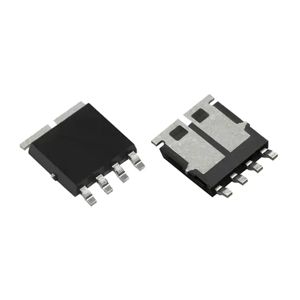

SQJB00EP-T1_BE3
