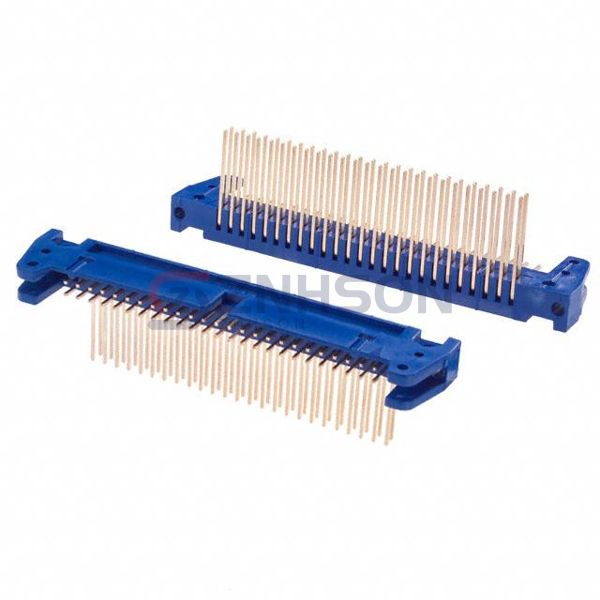

CWN-320-50-0000
CW Industries
CW Industries
CONN HEADER R/A 50POS 2.54MM
$11.13
Available to order
Reference Price (USD)
1+
$6.84000
10+
$6.55500
100+
$5.41500
500+
$4.56000
1,000+
$3.99000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Choose the CWN-320-50-0000 rectangular connector header from CW Industries for superior male pin interconnections. These headers are engineered for high-density applications, offering excellent conductivity and mechanical stability. Common uses include server racks, test equipment, and marine electronics. CW Industries is committed to providing connectors that exceed industry expectations.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 50
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole, Right Angle
- Termination: Wire Wrap
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.240" (6.10mm)
- Contact Length - Post: 0.610" (15.49mm)
- Overall Contact Length: -
- Insulation Height: 0.291" (7.40mm)
- Contact Shape: Circular
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 10.0µin (0.25µm)
- Contact Finish - Post: Nickel
- Contact Material: Phosphor Bronze
- Insulation Material: Thermoplastic
- Features: Keying Slot, Mounting Flange
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Blue
- Current Rating (Amps): 1A
- Voltage Rating: -
