CWN-350-16-0000
CW Industries
CW Industries

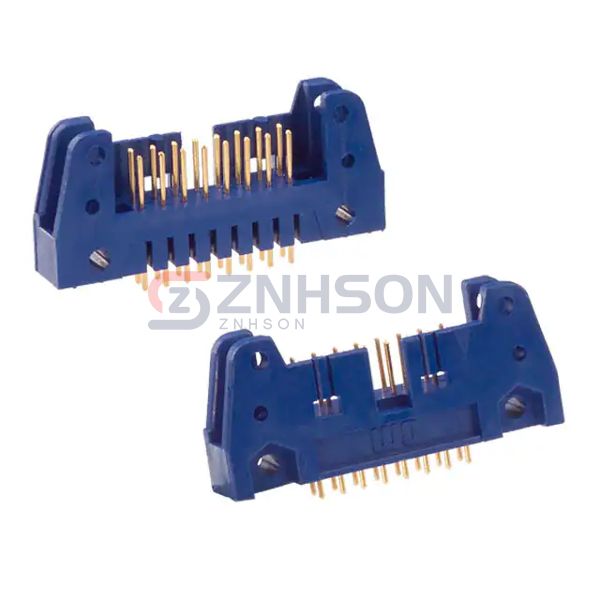

CONN HEADER VERT 16POS 2.54MM
$3.33
Available to order
Reference Price (USD)
1+
$2.62000
10+
$2.37700
100+
$2.03700
500+
$1.69750
1,000+
$1.45500
5,000+
$1.29010
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your electronic designs with the CWN-350-16-0000 rectangular connector header by CW Industries. These male pin connectors provide a secure and efficient solution for PCB interconnections. Featuring a compact design and high conductivity, the CWN-350-16-0000 ensures optimal signal transmission. Suitable for harsh environments, these headers are resistant to vibration and corrosion. Common uses include industrial automation, medical devices, and aerospace systems. Trust CW Industries for connectors that deliver performance and reliability in every application.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 16
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.240" (6.10mm)
- Contact Length - Post: 0.090" (2.29mm)
- Overall Contact Length: -
- Insulation Height: 0.681" (17.30mm)
- Contact Shape: Circular
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 10.0µin (0.25µm)
- Contact Finish - Post: Nickel
- Contact Material: Phosphor Bronze
- Insulation Material: Thermoplastic
- Features: Keying Slot, Mounting Flange
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Blue
- Current Rating (Amps): 1A
- Voltage Rating: -
