CWN-571-60-0060
CW Industries
CW Industries
CONN HEADER VERT 60POS 2.54MM
$12.17
Available to order
Reference Price (USD)
1+
$8.28000
10+
$7.92000
100+
$6.66000
500+
$5.58000
1,000+
$4.93200
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram

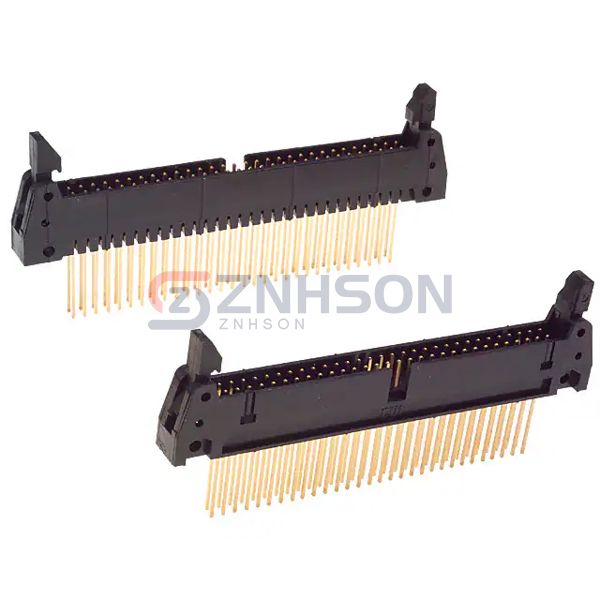

The CWN-571-60-0060 male pin header by CW Industries provides a reliable solution for rectangular connectors. Designed for ease of use and high performance, these headers are suitable for a wide range of applications, including LED lighting, HVAC systems, and portable devices. CW Industries guarantees connectors that enhance your product's functionality and lifespan.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 60
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Wire Wrap
- Fastening Type: Latch Lock/Eject Hooks, Short
- Contact Length - Mating: 0.240" (6.10mm)
- Contact Length - Post: 0.610" (15.49mm)
- Overall Contact Length: -
- Insulation Height: 0.681" (17.30mm)
- Contact Shape: Circular
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 10.0µin (0.25µm)
- Contact Finish - Post: Nickel
- Contact Material: Phosphor Bronze
- Insulation Material: Thermoplastic
- Features: Keying Slot
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 1A
- Voltage Rating: -
