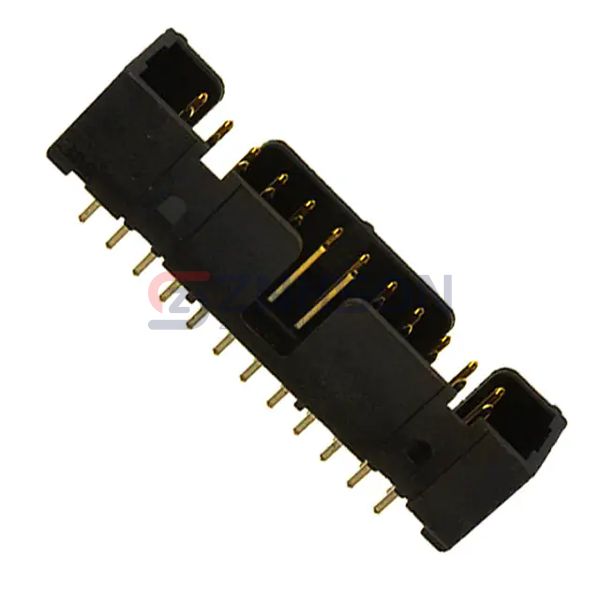

D2524-6002-AR

Manufacturer

Description:

CONN HEADER VERT 24POS 2.54MM

Datasheet:

D2524-6002-AR Datasheet

$3.60

Available to order

Reference Price (USD)

$2.66000

10+

$2.55400

392+

$1.86199

784+

$1.64920

1,176+

$1.54280

5,096+

$1.38320

Exquisite packaging

Discount

TT / Paypal / Credit Card / Western Union / Money Gram

Choose the D2524-6002-AR rectangular connector header from 3M for superior male pin interconnections. These headers are engineered for high-density applications, offering excellent conductivity and mechanical stability. Common uses include server racks, test equipment, and marine electronics. 3M is committed to providing connectors that exceed industry expectations.

Specifications

Product Status: Active
Connector Type: Header
Contact Type: Male Pin
Pitch - Mating: 0.100" (2.54mm)
Number of Positions: 24
Number of Rows: 2
Row Spacing - Mating: 0.100" (2.54mm)
Number of Positions Loaded: All
Style: Board to Cable/Wire
Shrouding: Shrouded - 4 Wall
Mounting Type: Through Hole
Termination: Solder
Fastening Type: Push-Pull
Contact Length - Mating: 0.243" (6.17mm)
Contact Length - Post: 0.112" (2.84mm)
Overall Contact Length: 0.492" (12.50mm)
Insulation Height: 0.253" (6.43mm)
Contact Shape: Square
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 10.0µin (0.25µm)
Contact Finish - Post: Tin
Contact Material: Brass
Insulation Material: Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
Features: Keying Slot
Operating Temperature: -55°C ~ 105°C
Ingress Protection: -
Material Flammability Rating: UL94 V-0
Insulation Color: Black
Current Rating (Amps): 1.75A
Voltage Rating: -
