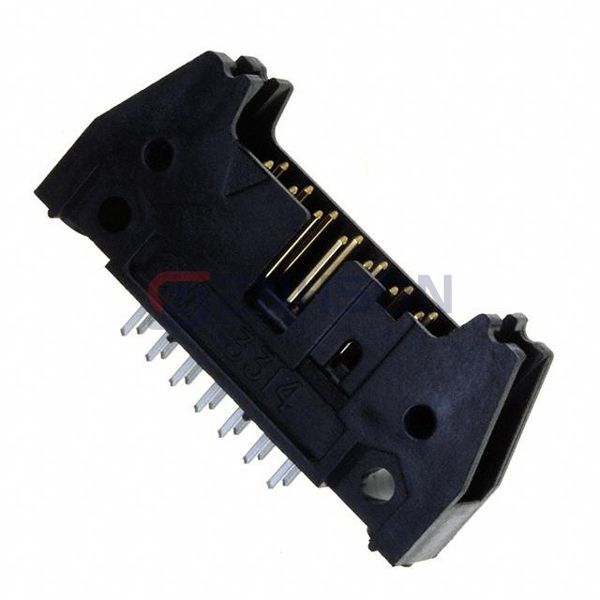

D3314-6002-AR

Manufacturer

Description:

CONN HEADER VERT 14POS 2.54MM

Datasheet:

D3314-6002-AR Datasheet

$1.59

Available to order

Reference Price (USD)

$1.51000

10+

$1.37200

350+

$1.06400

700+

$0.98000

1,050+

$0.84000

5,250+

$0.74480

10,150+

$0.72800

Exquisite packaging

Discount

TT / Paypal / Credit Card / Western Union / Money Gram

The D3314-6002-AR male pin header by 3M offers a dependable solution for rectangular connectors. Designed for easy integration, these headers ensure consistent connectivity in demanding environments. Features include high-temperature resistance and superior contact stability. Applications range from industrial machinery to smart home systems. Choose 3M for connectors that combine innovation with durability.

Specifications

Product Status: Active
Connector Type: Header
Contact Type: Male Pin
Pitch - Mating: 0.100" (2.54mm)
Number of Positions: 14
Number of Rows: 2
Row Spacing - Mating: 0.100" (2.54mm)
Number of Positions Loaded: All
Style: Board to Cable/Wire
Shrouding: Shrouded - 4 Wall
Mounting Type: Through Hole
Termination: Solder
Fastening Type: Push-Pull
Contact Length - Mating: 0.240" (6.10mm)
Contact Length - Post: 0.112" (2.84mm)
Overall Contact Length: 0.652" (16.56mm)
Insulation Height: 0.680" (17.27mm)
Contact Shape: Square
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 10.0µin (0.25µm)
Contact Finish - Post: Tin
Contact Material: Brass
Insulation Material: Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
Features: Keying Slot, Mounting Flange
Operating Temperature: -55°C ~ 105°C
Ingress Protection: -
Material Flammability Rating: UL94 V-0
Insulation Color: Black
Current Rating (Amps): 1.75A
Voltage Rating: -
