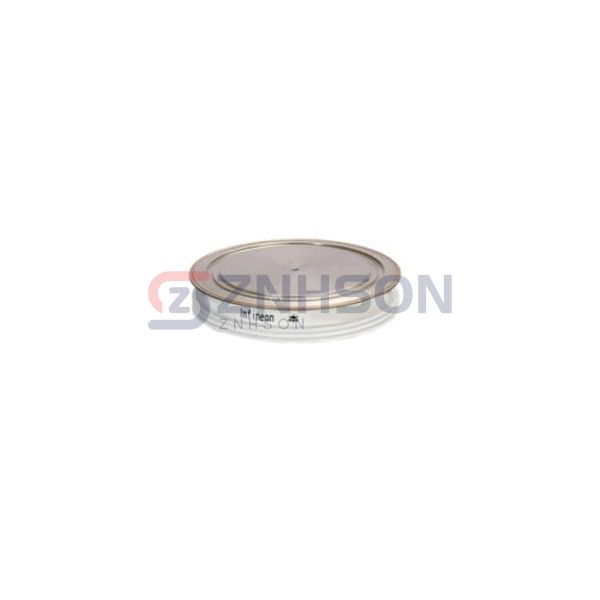

D56U45CXPSA1
Infineon Technologies
Infineon Technologies
DIODE RECT FAST BG-DSW272-1
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your electronic designs with the D56U45CXPSA1 single rectifier diode from Infineon Technologies. This diode, part of the Discrete Semiconductor Products family, offers exceptional rectification efficiency and thermal stability. Its compact design and high current capacity make it suitable for space-constrained applications like mobile devices, laptops, and IoT gadgets. The D56U45CXPSA1 is also ideal for automotive electronics, including alternators and voltage regulators, where reliability is critical. Infineon Technologies's commitment to innovation ensures that the D56U45CXPSA1 meets the highest industry standards for performance and longevity.
Specifications
- Product Status: Obsolete
- Diode Type: Standard
- Voltage - DC Reverse (Vr) (Max): 4500 V
- Current - Average Rectified (Io): 102A
- Voltage - Forward (Vf) (Max) @ If: 4.5 V @ 320 A
- Speed: Standard Recovery >500ns, > 200mA (Io)
- Reverse Recovery Time (trr): 3.3 µs
- Current - Reverse Leakage @ Vr: 5 mA @ 4500 V
- Capacitance @ Vr, F: -
- Mounting Type: Stud Mount
- Package / Case: -
- Supplier Device Package: BG-DSW272-1
- Operating Temperature - Junction: 125°C (Max)
Related Products
Vishay General Semiconductor - Diodes Division
MBRB16H35HE3/45
Taiwan Semiconductor Corporation
SS115LHMQG
Nexperia USA Inc.
PMEG3010AESBZ
Vishay General Semiconductor - Diodes Division
ES3GHE3/57T
Infineon Technologies
D251K14BXPSA1
Micro Commercial Co
MUR115-AP
Taiwan Semiconductor Corporation

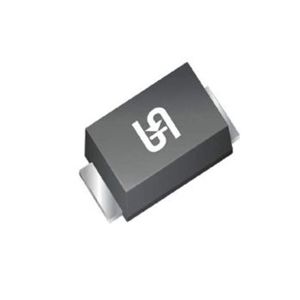

SS24LHRVG
Taiwan Semiconductor Corporation

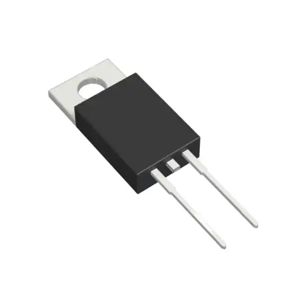

HERAF1008G
