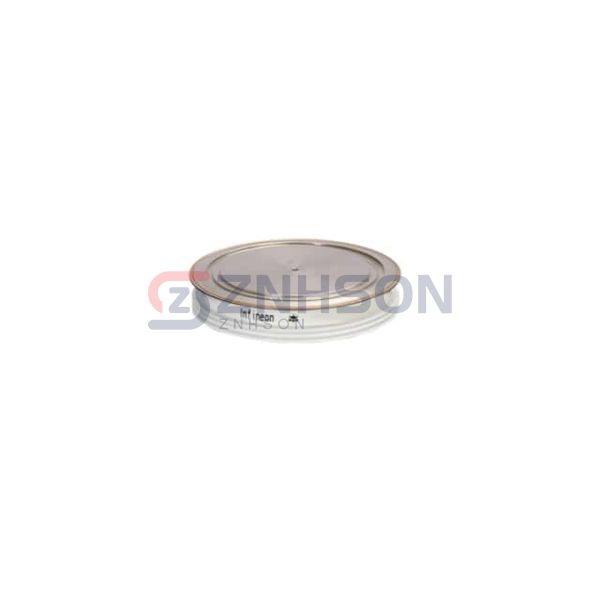

D690S22TXPSA1
Infineon Technologies
Infineon Technologies
DIODE GEN PURP 2.2KV 690A
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The D690S22TXPSA1 from Infineon Technologies is a high-performance single rectifier diode designed for efficient power conversion in various electronic applications. As part of the Discrete Semiconductor Products category, this diode ensures reliable and fast switching, making it ideal for power supplies, inverters, and converters. Its robust construction and low forward voltage drop minimize energy loss, enhancing overall system efficiency. Common applications include AC/DC conversion, voltage clamping, and reverse polarity protection in automotive, industrial, and consumer electronics. Trust Infineon Technologies's D690S22TXPSA1 for superior performance and durability in demanding environments.
Specifications
- Product Status: Obsolete
- Diode Type: Standard
- Voltage - DC Reverse (Vr) (Max): 2200 V
- Current - Average Rectified (Io): 690A
- Voltage - Forward (Vf) (Max) @ If: 2.7 V @ 3000 A
- Speed: Standard Recovery >500ns, > 200mA (Io)
- Reverse Recovery Time (trr): 9 µs
- Current - Reverse Leakage @ Vr: 25 mA @ 2200 V
- Capacitance @ Vr, F: -
- Mounting Type: Chassis Mount
- Package / Case: DO-200AB, B-PUK
- Supplier Device Package: -
- Operating Temperature - Junction: -40°C ~ 150°C
