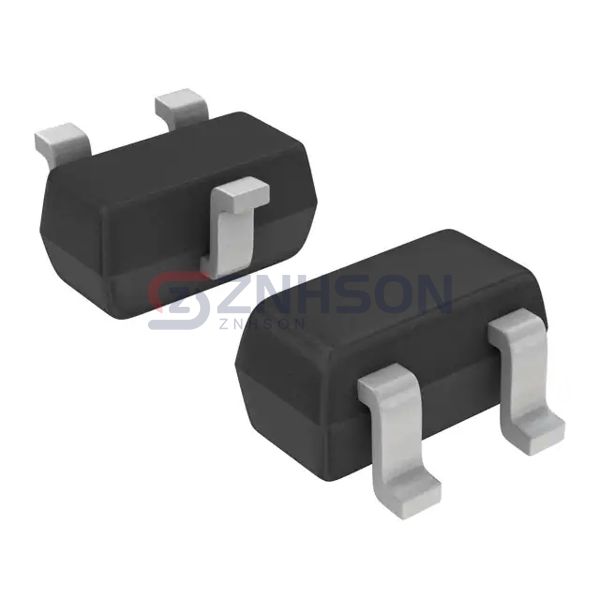

DAP222
onsemi
onsemi
DIODE ARRAY GP 80V 100MA SC75
$0.05
Available to order
Reference Price (USD)
1+
$0.05000
500+
$0.0495
1000+
$0.049
1500+
$0.0485
2000+
$0.048
2500+
$0.0475
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
For engineers specializing in power electronics, the DAP222 by onsemi represents the pinnacle of rectifier diode array technology. Part of the essential Discrete Semiconductor Products lineup, this device features parallel diode configurations for increased current handling. Its applications span photovoltaic systems, UPS backups, and industrial automation controls. With onsemi's patented junction design, the DAP222 achieves superior heat dissipation and long-term stability under continuous load.
Specifications
- Product Status: Obsolete
- Diode Configuration: 1 Pair Common Anode
- Diode Type: Standard
- Voltage - DC Reverse (Vr) (Max): 80 V
- Current - Average Rectified (Io) (per Diode): 100mA (DC)
- Voltage - Forward (Vf) (Max) @ If: 1.2 V @ 100 mA
- Speed: Small Signal =< 200mA (Io), Any Speed
- Reverse Recovery Time (trr): 10 ns
- Current - Reverse Leakage @ Vr: 100 nA @ 70 V
- Operating Temperature - Junction: 150°C (Max)
- Mounting Type: Surface Mount
- Package / Case: SC-75, SOT-416
- Supplier Device Package: SC-75, SOT-416
