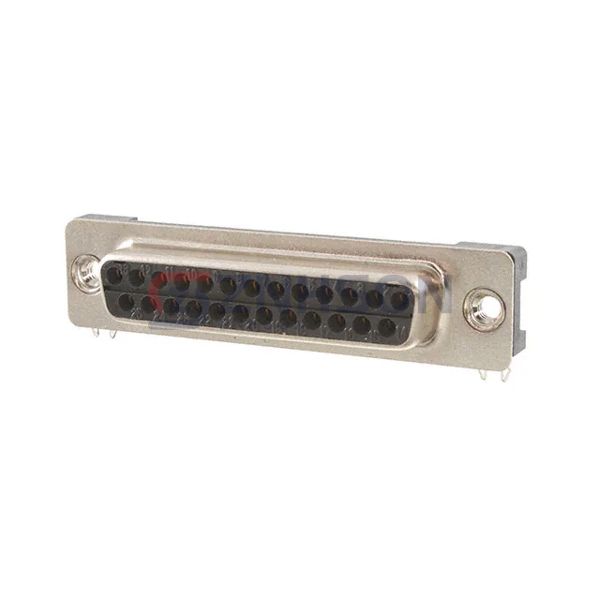

DB25-SS-24
Adam Tech
Adam Tech
CONN D-SUB RCPT 25P SMD R/A SLDR
$6.43
Available to order
Reference Price (USD)
1+
$4.80000
10+
$4.60600
25+
$4.22200
50+
$4.03000
100+
$3.83800
250+
$3.35824
500+
$3.26230
1,000+
$2.78255
2,500+
$2.59065
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Adam Tech presents the DB25-SS-24 D-Sub connector family - premium interconnect components for professional electronics. Characterized by their distinctive D-shaped metal shield, these connectors offer 5A current rating and 1000V dielectric strength. Our Connectors catalog highlights their mixed-contact capability (combining power and signal contacts) and solder cup/PCB termination options. The DB25-SS-24 is particularly effective in test & measurement instruments, broadcast equipment, and industrial control panels. Specific implementations include oscilloscope interfaces, PLC connections, and CNC machine wiring where consistent signal integrity is paramount.
Specifications
- Product Status: Active
- Connector Style: D-Sub
- Connector Type: Receptacle, Female Sockets
- Number of Positions: 25
- Number of Rows: 2
- Mounting Type: Surface Mount, Right Angle
- Shell Size, Connector Layout: 3 (DB, B)
- Contact Type: -
- Flange Feature: Housing/Shell (4-40)
- Termination: Solder
- Primary Material: -
- Shell Material, Finish: Steel, Nickel Plated
- Contact Finish: Gold
- Contact Finish Thickness: -
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Current Rating (Amps): 5A
- Backset Spacing: -
- Features: Board Lock
Related Products
Oupiin
7916-78FBC00A
EDAC Inc.
630-21W4240-3TD
EDAC Inc.
638-026-330-041
EDAC Inc.
638-062-630-069
EDAC Inc.
629-43W2650-4N6
EDAC Inc.
628-13W6624-2T3
EDAC Inc.
627-13W3222-2NA
EDAC Inc.
627-7W2-222-1T1
EDAC Inc.

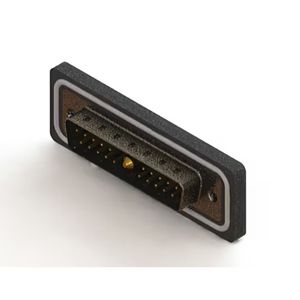

627W21W1224-1NA
