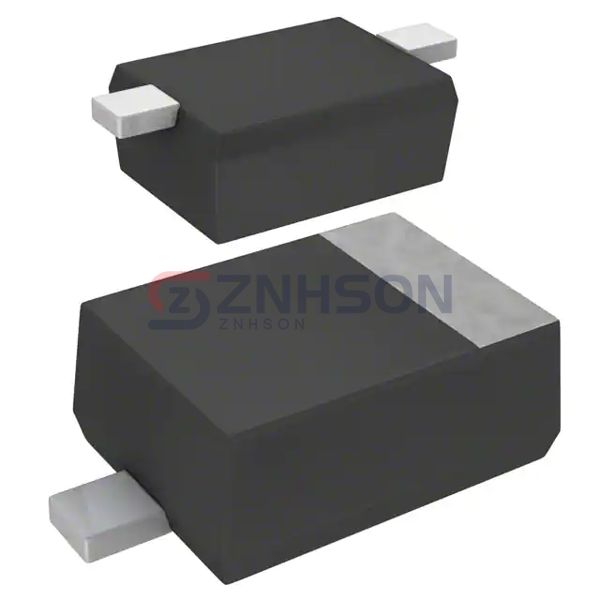

DB2J20900L
Panasonic Electronic Components
Panasonic Electronic Components
DIODE SCHOTTKY 20V 500MA SMINI2
$0.00
Available to order
Reference Price (USD)
3,000+
$0.04807
6,000+
$0.04180
15,000+
$0.03553
30,000+
$0.03344
75,000+
$0.03135
150,000+
$0.02926
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The DB2J20900L by Panasonic Electronic Components is a top-tier single rectifier diode designed for high-efficiency power conversion. Belonging to the Diodes - Rectifiers - Single category, it features ultra-fast recovery times and minimal power dissipation, making it perfect for switch-mode power supplies and DC-DC converters. Its versatile applications span industrial motor drives, solar inverters, and consumer electronics, where consistent performance is essential. Engineered for durability, the DB2J20900L ensures long-term reliability even in harsh operating conditions. Trust Panasonic Electronic Components for cutting-edge semiconductor solutions that drive innovation.
Specifications
- Product Status: Discontinued at Digi-Key
- Diode Type: Schottky
- Voltage - DC Reverse (Vr) (Max): 20 V
- Current - Average Rectified (Io): 500mA
- Voltage - Forward (Vf) (Max) @ If: 500 mV @ 500 mA
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): 2.4 ns
- Current - Reverse Leakage @ Vr: 30 µA @ 10 V
- Capacitance @ Vr, F: 7pF @ 10V, 1MHz
- Mounting Type: Surface Mount
- Package / Case: SC-90, SOD-323F
- Supplier Device Package: SMini2-F5-B
- Operating Temperature - Junction: 125°C (Max)
