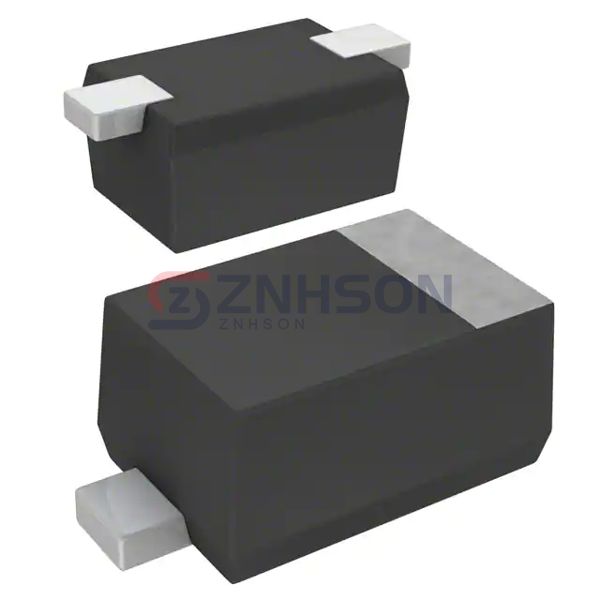

DB2S30800L
Panasonic Electronic Components
Panasonic Electronic Components
DIODE SCHOTTKY 30V 100MA SSMINI2
$0.00
Available to order
Reference Price (USD)
3,000+
$0.03933
6,000+
$0.03420
15,000+
$0.02907
30,000+
$0.02736
75,000+
$0.02565
150,000+
$0.02394
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The DB2S30800L by Panasonic Electronic Components is a top-tier single rectifier diode designed for high-efficiency power conversion. Belonging to the Diodes - Rectifiers - Single category, it features ultra-fast recovery times and minimal power dissipation, making it perfect for switch-mode power supplies and DC-DC converters. Its versatile applications span industrial motor drives, solar inverters, and consumer electronics, where consistent performance is essential. Engineered for durability, the DB2S30800L ensures long-term reliability even in harsh operating conditions. Trust Panasonic Electronic Components for cutting-edge semiconductor solutions that drive innovation.
Specifications
- Product Status: Discontinued at Digi-Key
- Diode Type: Schottky
- Voltage - DC Reverse (Vr) (Max): 30 V
- Current - Average Rectified (Io): 100mA
- Voltage - Forward (Vf) (Max) @ If: 420 mV @ 100 mA
- Speed: Small Signal =< 200mA (Io), Any Speed
- Reverse Recovery Time (trr): 1.3 ns
- Current - Reverse Leakage @ Vr: 120 µA @ 30 V
- Capacitance @ Vr, F: 2.9pF @ 10V, 1MHz
- Mounting Type: Surface Mount
- Package / Case: SC-79, SOD-523
- Supplier Device Package: SSMini2-F5-B
- Operating Temperature - Junction: 125°C (Max)
Related Products
STMicroelectronics
STTH512B
Vishay General Semiconductor - Diodes Division
1N4148-A
Taiwan Semiconductor Corporation
UG06D A0G
Taiwan Semiconductor Corporation
SR502 A0G
Rohm Semiconductor

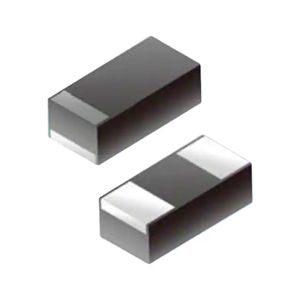

RB550SS-30T2R
Vishay General Semiconductor - Diodes Division

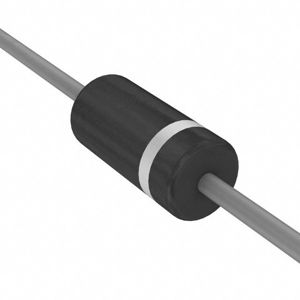

1N5622GP-E3/54
Taiwan Semiconductor Corporation

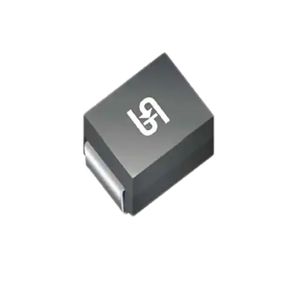

S3KHR7G
Taiwan Semiconductor Corporation

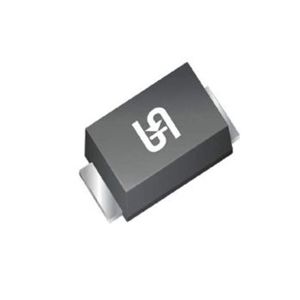

RSFKL RQG
Microchip Technology

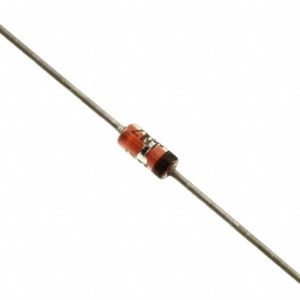

JANTXV1N6677-1
