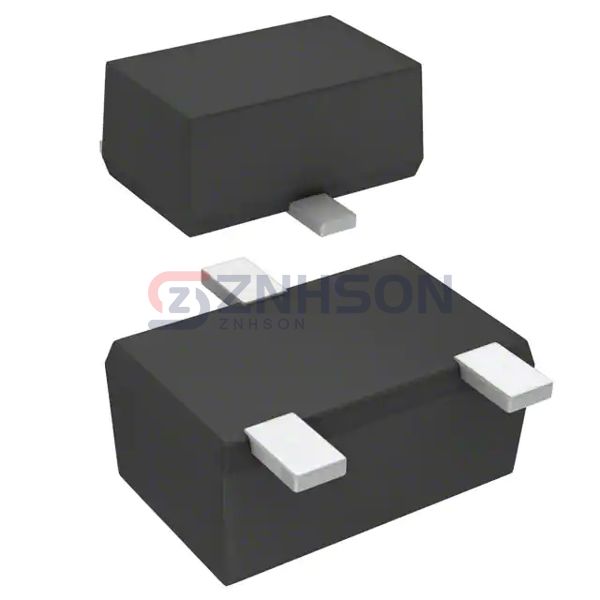

DB3J316K0L
Panasonic Electronic Components
Panasonic Electronic Components
DIODE SCHOTTKY 30V 100MA SMINI3
$0.00
Available to order
Reference Price (USD)
3,000+
$0.05065
6,000+
$0.04462
15,000+
$0.03859
30,000+
$0.03658
75,000+
$0.03457
150,000+
$0.03256
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The DB3J316K0L by Panasonic Electronic Components is a top-tier single rectifier diode designed for high-efficiency power conversion. Belonging to the Diodes - Rectifiers - Single category, it features ultra-fast recovery times and minimal power dissipation, making it perfect for switch-mode power supplies and DC-DC converters. Its versatile applications span industrial motor drives, solar inverters, and consumer electronics, where consistent performance is essential. Engineered for durability, the DB3J316K0L ensures long-term reliability even in harsh operating conditions. Trust Panasonic Electronic Components for cutting-edge semiconductor solutions that drive innovation.
Specifications
- Product Status: Discontinued at Digi-Key
- Diode Type: Schottky
- Voltage - DC Reverse (Vr) (Max): 30 V
- Current - Average Rectified (Io): 100mA
- Voltage - Forward (Vf) (Max) @ If: 550 mV @ 100 mA
- Speed: Small Signal =< 200mA (Io), Any Speed
- Reverse Recovery Time (trr): 800 ps
- Current - Reverse Leakage @ Vr: 15 µA @ 30 V
- Capacitance @ Vr, F: 2pF @ 10V, 1MHz
- Mounting Type: Surface Mount
- Package / Case: SC-85
- Supplier Device Package: SMini3-F2-B
- Operating Temperature - Junction: 125°C (Max)
