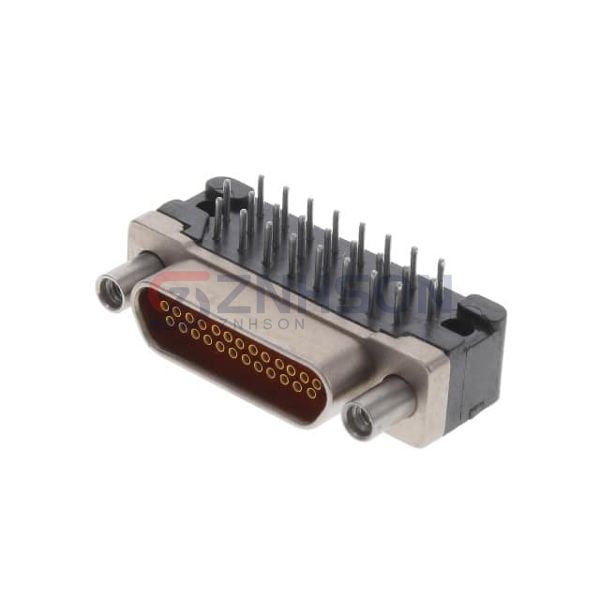

DCCM25SCBRPN
Cinch Connectivity Solutions
Cinch Connectivity Solutions
CONN MICRO-D RCPT 25POS R/A SLDR
$130.61
Available to order
Reference Price (USD)
1+
$71.96000
10+
$67.72800
25+
$65.61160
50+
$61.37860
100+
$57.99210
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The DCCM25SCBRPN D-Sub series by Cinch Connectivity Solutions sets new benchmarks in the Connectors and Interconnects category. These high-density connectors pack up to 104 contacts in compact DA-26 shells while maintaining 500VAC isolation. Key applications include flight data recorders, nuclear power plant controls, and underground mining equipment where space efficiency and reliability are critical. The DCCM25SCBRPN differentiates itself with integrated grounding lugs, removable contact modules, and optional potting for environmental sealing. Electrical engineers value these connectors for their low insertion force design and compatibility with automated assembly processes.
Specifications
- Product Status: Active
- Connector Style: D-Type, Micro-D
- Connector Type: Receptacle, Female Sockets
- Number of Positions: 25
- Number of Rows: 2
- Mounting Type: Through Hole, Right Angle
- Shell Size, Connector Layout: 0.050 Pitch x 0.043 Row to Row
- Contact Type: Signal
- Flange Feature: Mating Side, Female Screwlock
- Termination: Solder
- Primary Material: -
- Shell Material, Finish: Aluminum Alloy, Nickel Plated, Electroless
- Contact Finish: Gold
- Contact Finish Thickness: 50.0µin (1.27µm)
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Current Rating (Amps): 3A
- Backset Spacing: 0.130" (3.30mm)
- Features: Shielded
Related Products
EDAC Inc.
621-037-260-510
EDAC Inc.
625-025-362-515
EDAC Inc.
629-3W3-640-5N6
EDAC Inc.
633-015-263-535
EDAC Inc.
664-015-364-001
EDAC Inc.
630-47W1640-1T2
EDAC Inc.
627-8W8-224-2N6
EDAC Inc.

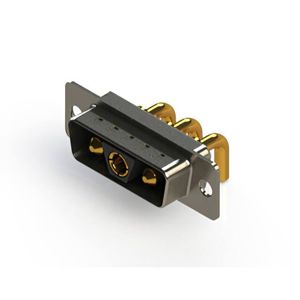

629-3WK3640-2T1
