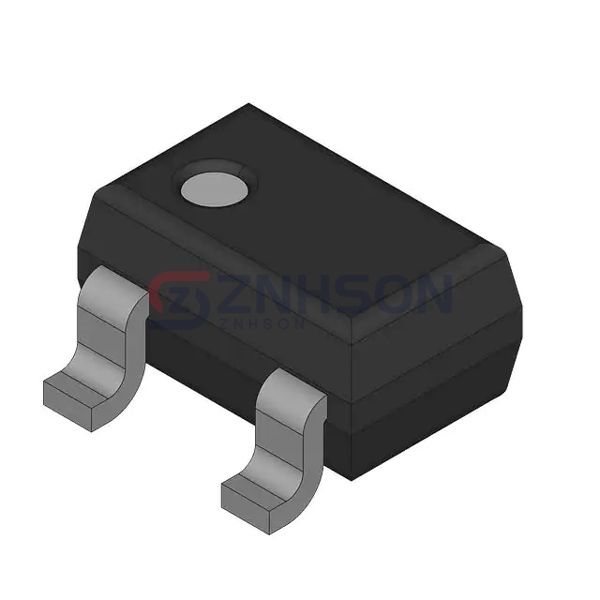

DCG010-TL-E
Fairchild Semiconductor
Fairchild Semiconductor
ULTRAHIGH-SPEED SWITCHING DIODE
$0.08
Available to order
Reference Price (USD)
1+
$0.08000
500+
$0.0792
1000+
$0.0784
1500+
$0.0776
2000+
$0.0768
2500+
$0.076
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The DCG010-TL-E from Fairchild Semiconductor sets new benchmarks in the Discrete Semiconductor Products market. This rectifier array incorporates advanced epitaxial growth technology for superior reverse recovery characteristics. Perfect for high-efficiency adapters, induction heating, and plasma cutting equipment, it offers outstanding thermal cycling performance. Fairchild Semiconductor's rigorous quality control ensures the DCG010-TL-E maintains consistent parameters across production batches for design-in reliability.
Specifications
- Product Status: Obsolete
- Diode Configuration: 1 Pair Common Cathode
- Diode Type: Standard
- Voltage - DC Reverse (Vr) (Max): 80 V
- Current - Average Rectified (Io) (per Diode): 100mA
- Voltage - Forward (Vf) (Max) @ If: 1.2 V @ 100 mA
- Speed: Small Signal =< 200mA (Io), Any Speed
- Reverse Recovery Time (trr): 4 ns
- Current - Reverse Leakage @ Vr: 500 nA @ 80 V
- Operating Temperature - Junction: 125°C (Max)
- Mounting Type: Surface Mount
- Package / Case: SC-70, SOT-323
- Supplier Device Package: MCP
