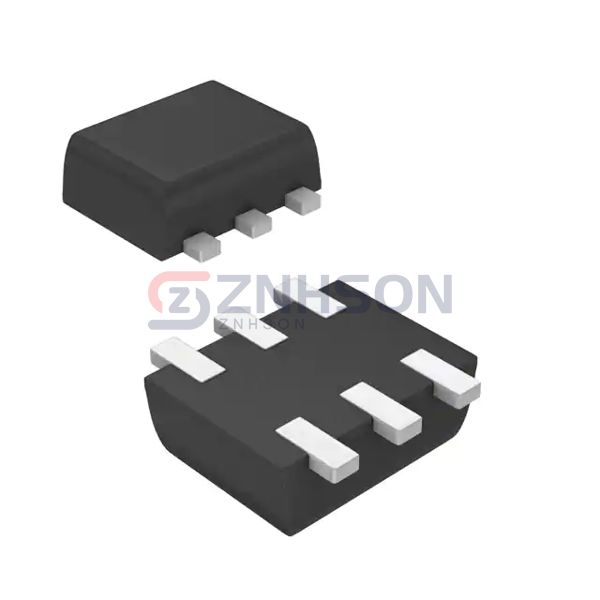

DCX4710H-7
Diodes Incorporated
Diodes Incorporated
TRANS PREBIAS NPN/PNP SOT563
$0.00
Available to order
Reference Price (USD)
3,000+
$0.10450
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the versatility of Diodes Incorporated's DCX4710H-7, a pre-biased BJT array tailored for modern electronics. This transistor array combines high current gain with low saturation voltage, making it ideal for switching and linear amplification. Its compact design and integrated resistors save PCB space while enhancing reliability. The DCX4710H-7 is widely used in IoT devices, medical equipment, and renewable energy systems. Diodes Incorporated's advanced fabrication techniques guarantee consistent performance, even under high-stress conditions. Whether for prototyping or mass production, the DCX4710H-7 offers a cost-effective solution for your semiconductor needs.
Specifications
- Product Status: Obsolete
- Transistor Type: 1 NPN, 1 PNP - Pre-Biased (Dual)
- Current - Collector (Ic) (Max): 100mA
- Voltage - Collector Emitter Breakdown (Max): 50V
- Resistor - Base (R1): 10kOhms
- Resistor - Emitter Base (R2): 10kOhms, 47kOhms
- DC Current Gain (hFE) (Min) @ Ic, Vce: 35 @ 5mA, 5V / 80 @ 5mA, 5V
- Vce Saturation (Max) @ Ib, Ic: 250mV @ 300µA, 10mA
- Current - Collector Cutoff (Max): 500nA
- Frequency - Transition: 250MHz
- Power - Max: 150mW
- Mounting Type: Surface Mount
- Package / Case: SOT-563, SOT-666
- Supplier Device Package: SOT-563
