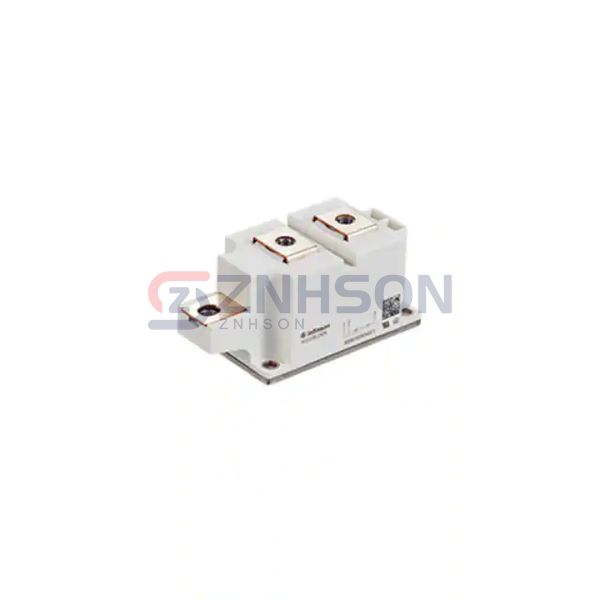

DD390N22SHPSA1
Infineon Technologies
Infineon Technologies
DIODE MOD GP 2200V 390A BGPB50SB
$117.34
Available to order
Reference Price (USD)
3+
$93.71333
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The DD390N22SHPSA1 from Infineon Technologies is a standout in the Discrete Semiconductor Products family, offering unmatched rectification efficiency in compact diode arrays. Designed for high-density PCB layouts, this product excels in bridge rectifiers and polarity protection circuits. Its low leakage current and high-temperature stability make it a favorite for telecommunications, consumer electronics, and medical devices. Choose Infineon Technologies's DD390N22SHPSA1 for applications where space-saving design meets industrial-grade reliability.
Specifications
- Product Status: Active
- Diode Configuration: 1 Pair Series Connection
- Diode Type: Standard
- Voltage - DC Reverse (Vr) (Max): 2200 V
- Current - Average Rectified (Io) (per Diode): 390A
- Voltage - Forward (Vf) (Max) @ If: 1.34 V @ 800 A
- Speed: Standard Recovery >500ns, > 200mA (Io)
- Reverse Recovery Time (trr): -
- Current - Reverse Leakage @ Vr: 1 mA @ 2200 V
- Operating Temperature - Junction: -40°C ~ 125°C
- Mounting Type: Chassis Mount
- Package / Case: Module
- Supplier Device Package: BG-PB50SB-1
