DDC114YU-7
Diodes Incorporated
Diodes Incorporated
TRANS 2NPN PREBIAS 0.2W SOT363
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your designs with Diodes Incorporated's DDC114YU-7, a pre-biased BJT array built for precision and efficiency. This transistor array simplifies circuit layout by incorporating bias resistors within the package, reducing assembly time and cost. The DDC114YU-7 is widely used in lighting systems, portable electronics, and automotive accessories. Diodes Incorporated's innovative approach ensures high yield and consistent quality across all production batches. With excellent thermal management and low power consumption, the DDC114YU-7 is a smart choice for energy-sensitive applications.
Specifications
- Product Status: Discontinued at Digi-Key
- Transistor Type: 2 NPN - Pre-Biased (Dual)
- Current - Collector (Ic) (Max): 100mA
- Voltage - Collector Emitter Breakdown (Max): 50V
- Resistor - Base (R1): 10kOhms
- Resistor - Emitter Base (R2): 47kOhms
- DC Current Gain (hFE) (Min) @ Ic, Vce: 68 @ 10mA, 5V
- Vce Saturation (Max) @ Ib, Ic: 300mV @ 250µA, 5mA
- Current - Collector Cutoff (Max): 500nA
- Frequency - Transition: 250MHz
- Power - Max: 200mW
- Mounting Type: Surface Mount
- Package / Case: 6-TSSOP, SC-88, SOT-363
- Supplier Device Package: SOT-363
Related Products
Panasonic Electronic Components
XP0621000L
Panasonic Electronic Components
DMC961040R
Toshiba Semiconductor and Storage
RN2908(T5L,F,T)
Panasonic Electronic Components
UP04390G0L
Panasonic Electronic Components
XN0621500L
Panasonic Electronic Components
DMC264010R
Toshiba Semiconductor and Storage
RN4902FE(TE85L,F)
Nexperia USA Inc.

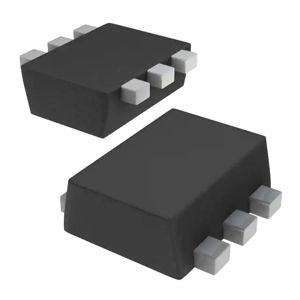

PEMD18,115
