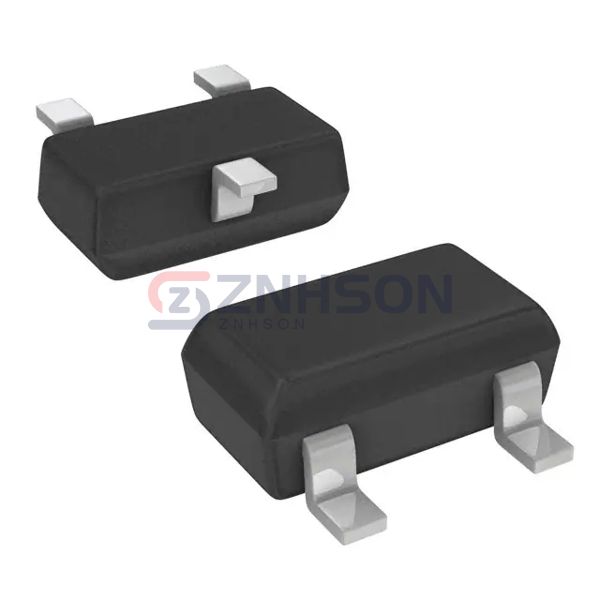

DDTC114YKA-7-F
Diodes Incorporated
Diodes Incorporated
TRANS PREBIAS NPN 200MW SC59-3
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your PCB layout with Diodes Incorporated's space-saving DDTC114YKA-7-F. This pre-configured bipolar transistor eliminates external biasing components while delivering 250mW power dissipation. Applications span from smart home appliances to automotive lighting systems. Diodes Incorporated combines 20+ years of semiconductor expertise with cutting-edge silicon technology in this robust solution.
Specifications
- Product Status: Obsolete
- Transistor Type: NPN - Pre-Biased
- Current - Collector (Ic) (Max): 100 mA
- Voltage - Collector Emitter Breakdown (Max): 50 V
- Resistor - Base (R1): 10 kOhms
- Resistor - Emitter Base (R2): 47 kOhms
- DC Current Gain (hFE) (Min) @ Ic, Vce: 68 @ 5mA, 5V
- Vce Saturation (Max) @ Ib, Ic: 300mV @ 250µA, 5mA
- Current - Collector Cutoff (Max): 500nA
- Frequency - Transition: 250 MHz
- Power - Max: 200 mW
- Mounting Type: Surface Mount
- Package / Case: TO-236-3, SC-59, SOT-23-3
- Supplier Device Package: SC-59-3
