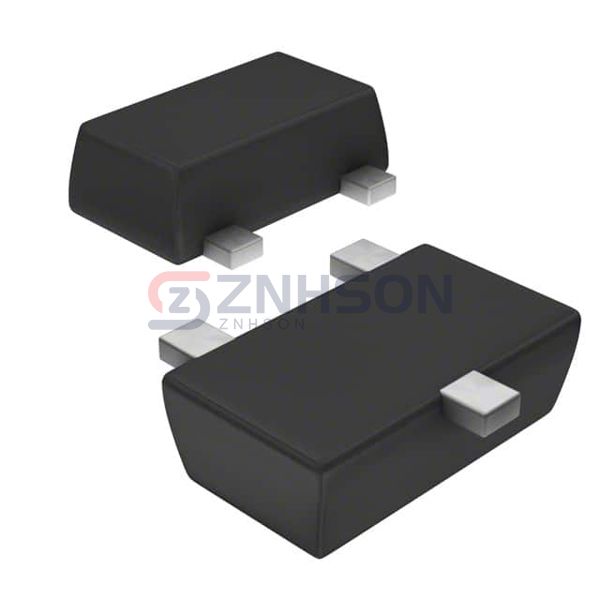

DDTC144WCA-7-F
Diodes Incorporated
Diodes Incorporated
TRANS PREBIAS NPN 200MW SOT23-3
$0.04
Available to order
Reference Price (USD)
3,000+
$0.04184
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
For designers seeking plug-and-play transistor solutions, DDTC144WCA-7-F offers unmatched convenience. Diodes Incorporated's pre-biased BJT features: 1k /10k integrated resistors 100MHz transition frequency Pb-free construction Deploy in wireless charging pads, industrial automation, or security systems for reliable operation under varying load conditions.
Specifications
- Product Status: Active
- Transistor Type: NPN - Pre-Biased
- Current - Collector (Ic) (Max): 100 mA
- Voltage - Collector Emitter Breakdown (Max): 50 V
- Resistor - Base (R1): 47 kOhms
- Resistor - Emitter Base (R2): 22 kOhms
- DC Current Gain (hFE) (Min) @ Ic, Vce: 56 @ 5mA, 5V
- Vce Saturation (Max) @ Ib, Ic: 300mV @ 500µA, 10mA
- Current - Collector Cutoff (Max): 500nA
- Frequency - Transition: 250 MHz
- Power - Max: 200 mW
- Mounting Type: Surface Mount
- Package / Case: SOT-23-3 Flat Leads
- Supplier Device Package: SOT-23F
Related Products
Toshiba Semiconductor and Storage
RN2302,LXHF
onsemi

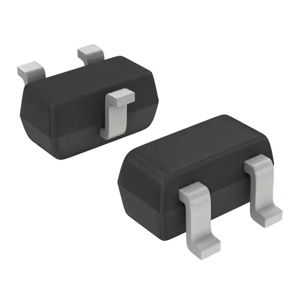

SDTC114EET1G
Toshiba Semiconductor and Storage

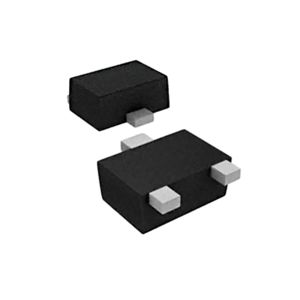

RN2132MFV,L3F
Rohm Semiconductor

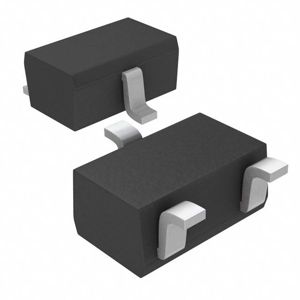

DTC115EUAT106
NXP USA Inc.

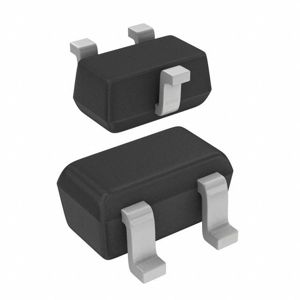

PDTC144VE,115
Toshiba Semiconductor and Storage

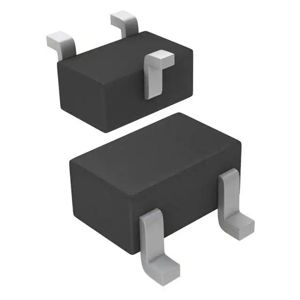

RN2304,LXHF
