DDTD142JU-7-F
Diodes Incorporated
Diodes Incorporated
TRANS PREBIAS NPN 200MW SOT323
$0.35
Available to order
Reference Price (USD)
3,000+
$0.06276
6,000+
$0.05520
15,000+
$0.04764
30,000+
$0.04512
75,000+
$0.04260
150,000+
$0.03840
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Diodes Incorporated's DDTD142JU-7-F redefines reliability in the Transistors - Bipolar (BJT) - Single, Pre-Biased category. With built-in bias resistors, this component accelerates prototyping while maintaining signal integrity. Key features include 1) 300mA collector current capacity 2) Wide operating temperature range (-55 C to +150 C) 3) RoHS compliance. Implement in motor control systems, sensor interfaces, or battery-powered devices for optimal results.
Specifications
- Product Status: Active
- Transistor Type: NPN - Pre-Biased
- Current - Collector (Ic) (Max): 500 mA
- Voltage - Collector Emitter Breakdown (Max): 50 V
- Resistor - Base (R1): 470 Ohms
- Resistor - Emitter Base (R2): 10 kOhms
- DC Current Gain (hFE) (Min) @ Ic, Vce: 56 @ 50mA, 5V
- Vce Saturation (Max) @ Ib, Ic: 300mV @ 2.5mA, 50mA
- Current - Collector Cutoff (Max): 500nA
- Frequency - Transition: 200 MHz
- Power - Max: 200 mW
- Mounting Type: Surface Mount
- Package / Case: SC-70, SOT-323
- Supplier Device Package: SOT-323
Related Products
Rohm Semiconductor
DTC143TMFHAT2L
onsemi
MMUN2116LT1
Rohm Semiconductor
DTC114TUAT106
Nexperia USA Inc.
PDTA114EU,135
NTE Electronics, Inc
NTE2356
Rohm Semiconductor
DTB123YKT146
Rohm Semiconductor
DTC123EMFHAT2L
Rohm Semiconductor

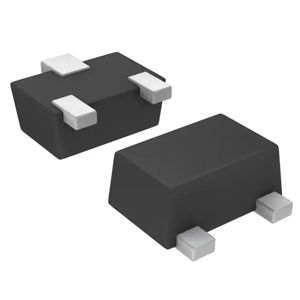

DTA015EMT2L
