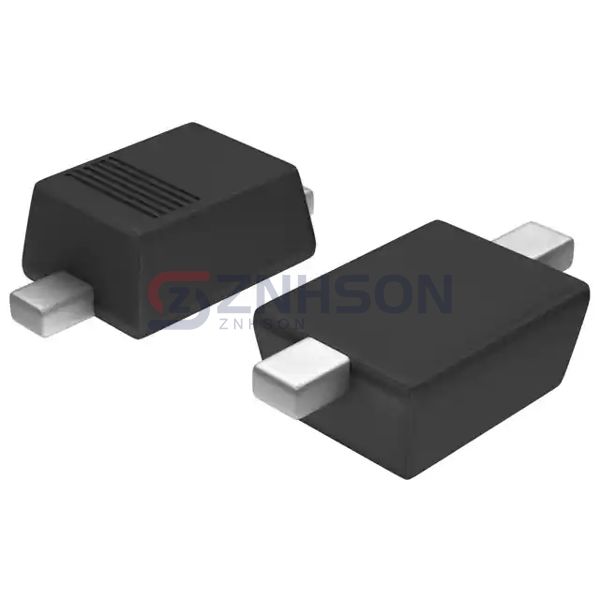

DDZ15BSF-7
Diodes Incorporated
Diodes Incorporated
DIODE ZENER 14.26V 500MW SOD323F
$0.23
Available to order
Reference Price (USD)
3,000+
$0.03750
6,000+
$0.03300
15,000+
$0.02850
30,000+
$0.02700
75,000+
$0.02550
150,000+
$0.02250
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Meet the DDZ15BSF-7 Zener diode from Diodes Incorporated, a standout in the Discrete Semiconductor Products category. This single Zener diode is designed for high-performance voltage regulation, with features like sharp breakdown voltage and minimal power dissipation. It is widely used in consumer electronics, such as gaming consoles and smart home devices, to ensure stable operation. The DDZ15BSF-7 is also integral to automotive systems, where it safeguards electronic components from voltage fluctuations. Additionally, it finds applications in medical equipment, providing reliable voltage references for diagnostic devices and patient monitors.
Specifications
- Product Status: Active
- Voltage - Zener (Nom) (Vz): 14.26 V
- Tolerance: ±3%
- Power - Max: 500 mW
- Impedance (Max) (Zzt): 40 Ohms
- Current - Reverse Leakage @ Vr: 70 nA @ 13.2 V
- Voltage - Forward (Vf) (Max) @ If: 900 mV @ 10 mA
- Operating Temperature: -65°C ~ 150°C
- Mounting Type: Surface Mount
- Package / Case: SC-90, SOD-323F
- Supplier Device Package: SOD-323F
Related Products
Microchip Technology

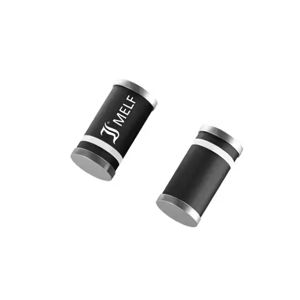

CDLL963B/TR
Diodes Incorporated
MMSZ5233BQ-7-F
Rohm Semiconductor

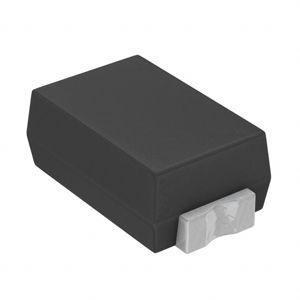

CDZFHT2RA10B
Microchip Technology

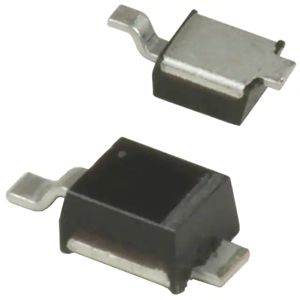

1PMT5928AE3/TR13
onsemi
BZX84C3V6LT1
Microchip Technology

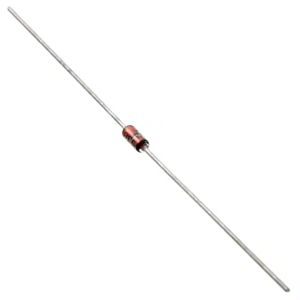

JANTXV1N4100D-1/TR
Vishay General Semiconductor - Diodes Division
1N4740A-TR
Taiwan Semiconductor Corporation
1SMB5951
Nexperia USA Inc.

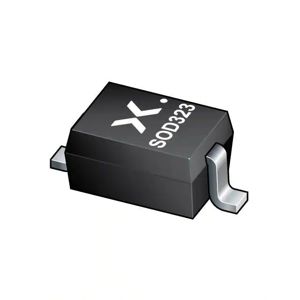

BZX38450-C5V1X
