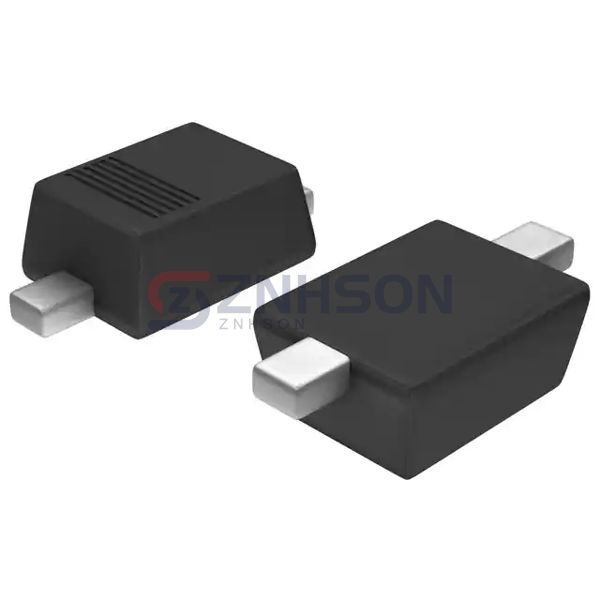

DDZ16CSF-7
Diodes Incorporated
Diodes Incorporated
DIODE ZENER 16.1V 500MW SOD323F
$0.18
Available to order
Reference Price (USD)
3,000+
$0.02915
6,000+
$0.02650
15,000+
$0.02332
30,000+
$0.02120
75,000+
$0.01908
150,000+
$0.01622
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The DDZ16CSF-7 by Diodes Incorporated is a high-performance single Zener diode, part of the Discrete Semiconductor Products lineup. Designed for accuracy and reliability, this diode features low dynamic impedance and excellent temperature stability. It is widely used in voltage reference circuits, power supplies, and signal conditioning applications. For instance, the DDZ16CSF-7 is essential in medical imaging devices, where it maintains precise voltage levels for accurate diagnostics. It also plays a critical role in aerospace electronics, ensuring reliable operation under extreme conditions. Furthermore, it is used in consumer electronics, such as smart TVs and home appliances, to enhance performance and longevity.
Specifications
- Product Status: Active
- Voltage - Zener (Nom) (Vz): 16.1 V
- Tolerance: ±3%
- Power - Max: 500 mW
- Impedance (Max) (Zzt): 40 Ohms
- Current - Reverse Leakage @ Vr: 70 nA @ 14.9 V
- Voltage - Forward (Vf) (Max) @ If: 900 mV @ 10 mA
- Operating Temperature: -65°C ~ 150°C
- Mounting Type: Surface Mount
- Package / Case: SC-90, SOD-323F
- Supplier Device Package: SOD-323F
