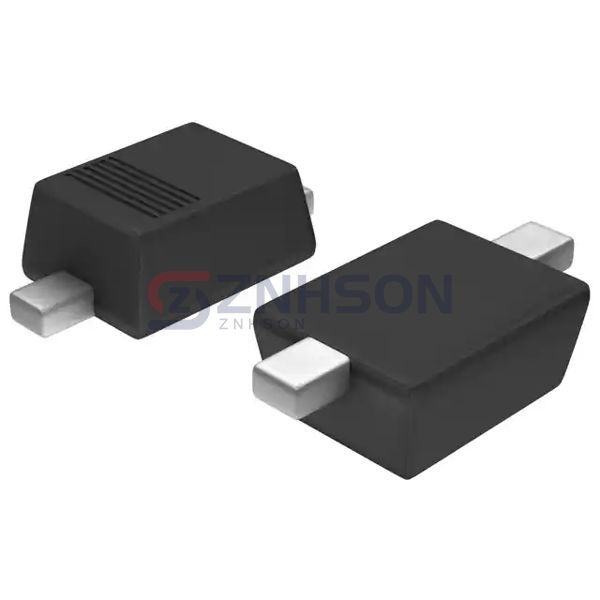

DDZ22DSF-7
Diodes Incorporated
Diodes Incorporated
DIODE ZENER 22.08V 500MW SOD323F
$0.19
Available to order
Reference Price (USD)
3,000+
$0.03438
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the DDZ22DSF-7 Zener diode by Diodes Incorporated, a standout in the Discrete Semiconductor Products lineup. This single Zener diode is engineered for precise voltage regulation, featuring a robust design that ensures long-term durability. With its low leakage current and high surge capability, the DDZ22DSF-7 is perfect for critical applications. Typical uses include voltage stabilization in consumer electronics, such as TVs and audio equipment, as well as in medical devices where consistent performance is paramount. The DDZ22DSF-7 is also a preferred choice for circuit protection in renewable energy systems, safeguarding inverters and charge controllers from voltage fluctuations.
Specifications
- Product Status: Active
- Voltage - Zener (Nom) (Vz): 22.08 V
- Tolerance: ±2.51%
- Power - Max: 500 mW
- Impedance (Max) (Zzt): 55 Ohms
- Current - Reverse Leakage @ Vr: 70 nA @ 20.4 V
- Voltage - Forward (Vf) (Max) @ If: 900 mV @ 10 mA
- Operating Temperature: -65°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: SC-90, SOD-323F
- Supplier Device Package: SOD-323F
