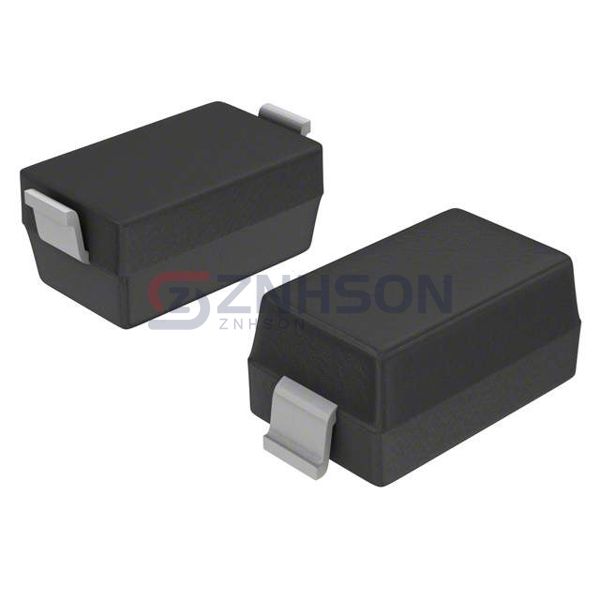

DDZ9702Q-7
Diodes Incorporated
Diodes Incorporated
DIODE ZENER 15V 500MW SOD123
$0.24
Available to order
Reference Price (USD)
3,000+
$0.04000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The DDZ9702Q-7 from Diodes Incorporated is a high-performance Zener diode designed for precision voltage regulation in various electronic circuits. As part of the Discrete Semiconductor Products category, this single Zener diode offers exceptional stability and reliability, making it ideal for applications requiring consistent voltage reference. Key features include low impedance, sharp breakdown characteristics, and excellent temperature stability. These diodes are widely used in power supplies, voltage clippers, and surge protectors. For instance, the DDZ9702Q-7 is commonly employed in automotive electronics, telecommunications equipment, and industrial control systems to ensure stable voltage levels and protect sensitive components from voltage spikes.
Specifications
- Product Status: Active
- Voltage - Zener (Nom) (Vz): 15 V
- Tolerance: ±5%
- Power - Max: 500 mW
- Impedance (Max) (Zzt): -
- Current - Reverse Leakage @ Vr: 50 nA @ 11.4 V
- Voltage - Forward (Vf) (Max) @ If: 900 mV @ 10 mA
- Operating Temperature: -65°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: SOD-123
- Supplier Device Package: SOD-123
