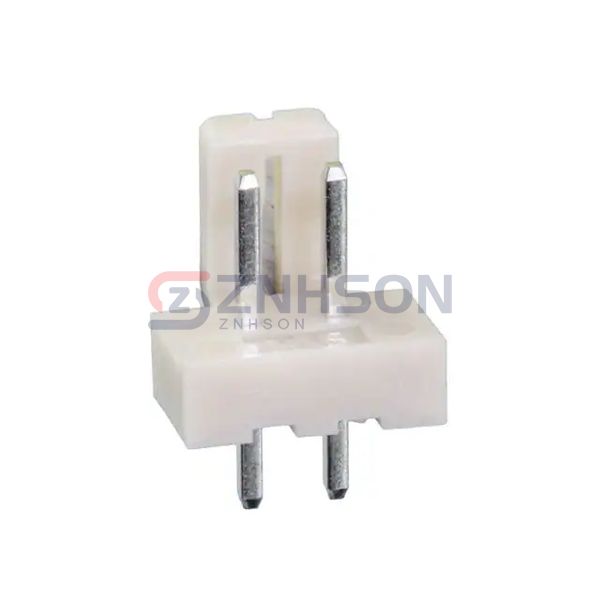

DF1-2P-2.5DSA(05)
Hirose Electric Co Ltd
Hirose Electric Co Ltd
CONN HEADER VERT 2POS 2.5MM
$0.31
Available to order
Reference Price (USD)
1+
$0.26000
10+
$0.24500
100+
$0.17150
500+
$0.14700
1,000+
$0.12250
5,000+
$0.10500
10,000+
$0.09800
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your interconnections with the DF1-2P-2.5DSA(05) rectangular connector header from Hirose Electric Co Ltd. These male pin headers feature a rugged design for high-stress environments. Offering excellent electrical and mechanical properties, the DF1-2P-2.5DSA(05) is perfect for automotive, industrial, and consumer electronics. Hirose Electric Co Ltd ensures each connector is tested for performance and durability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.098" (2.50mm)
- Number of Positions: 2
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 1 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Friction Lock
- Contact Length - Mating: 0.177" (4.50mm)
- Contact Length - Post: 0.118" (3.00mm)
- Overall Contact Length: 0.394" (10.00mm)
- Insulation Height: 0.295" (7.50mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 39.4µin (1.00µm)
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polyamide (PA), Nylon
- Features: -
- Operating Temperature: -30°C ~ 85°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Brown
- Current Rating (Amps): 3A
- Voltage Rating: 250V
